Colfax CX2110LPs-S12-X7 2U Rackmount Server



  • Single Intel® Xeon® Scalable Processor
  • 12x 3.5" Hot-Swap SAS3 Drive Bays
  • 2x 2.5" Hot-Swap Rear Drive Bays
  • SAS3 via Broadcom 3008 Controller

Features

  • 1x Intel® Xeon® Scalable Processor
  • Intel C622 Chipset
  • 8x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots
    - 1x PCI-E 3.0 x16 Slot
    - 2x PCI-E 3.0 x8 Slots
    - 1x PCI-E 3.0 x4 (in x8) Slot
  • 12x 3.5" Hot-Swap SAS3 12Gb/s Drive Bays + 2x 2.5" Hot-Swap Rear Drive Bays
  • SAS3 12Gbps Single Expander Backplane, w/ LSISAS3x28 Expander, Supports 12x 3.5" Drives, with 4x mini-SAS HD Connectors, 2 for Uplink and 2 for Downlink
  • Dual 10GBase-T LAN with Intel® X722 + X557
  • 800W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Single Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (70-205W TDP)
Memory • 8x DDR4 DIMM slots
• Supports up to 1024GB ECC 3DS LRDIMM, 192GB ECC RDIMM
• 2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C632
I/O Expansion • 1x PCI-E 3.0 x16 slot
• 2x PCI-E 3.0 x8 slots
• 1x PCI-E 3.0 x4 (in x8) slot
Onboard Devices SATA
• SATA3 (6Gbps) via C622 controller
• RAID 0, 1, 5, 10 support
SAS
• SAS3 (12Gbps) via Broadcom 3008
• SW RAID 0, 1, 10
Network Controllers
• Dual 10GBase-T LAN with Intel® X722 + X557
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC
Input / Output SATA
• 10x SATA3 (6Gbps) ports
LAN
• 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x USB 3.0 ports (rear)
• 2x USB 2.0 ports (rear)
VGA
• 1x VGA port
Serial Port
• 2 COM Ports (1 rear, 1 header)
Chassis Form Factor • 2U Rackmount
• Dimension: 17.2"W (437mm) x 3.5" (89mm) x 25.6" (648mm)
Power Supply • 800W Redundant Power Supplies with PMBus
• 80PLUS Titanium Certified
Storage • 12x hot-swap 3.5" SAS/SATA drive bays with SES3
• 2x hot-swap 2.5" NVMe/SATA drive bays (rear)
Backplane • SAS3 Backplane: SAS3 12Gbps single expander backplane, w/ LSISAS3x28 expander, support 12x 3.5" drives, with 4x mini-SAS HD connectors, 2 for uplink and another 2 for downlink
System Cooling • 3x high-performance 80mm PWM fans
Front Panel Buttons
• Power switch
• System Reset button
LEDs
• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Power fail LED
BIOS • AMI UEFI

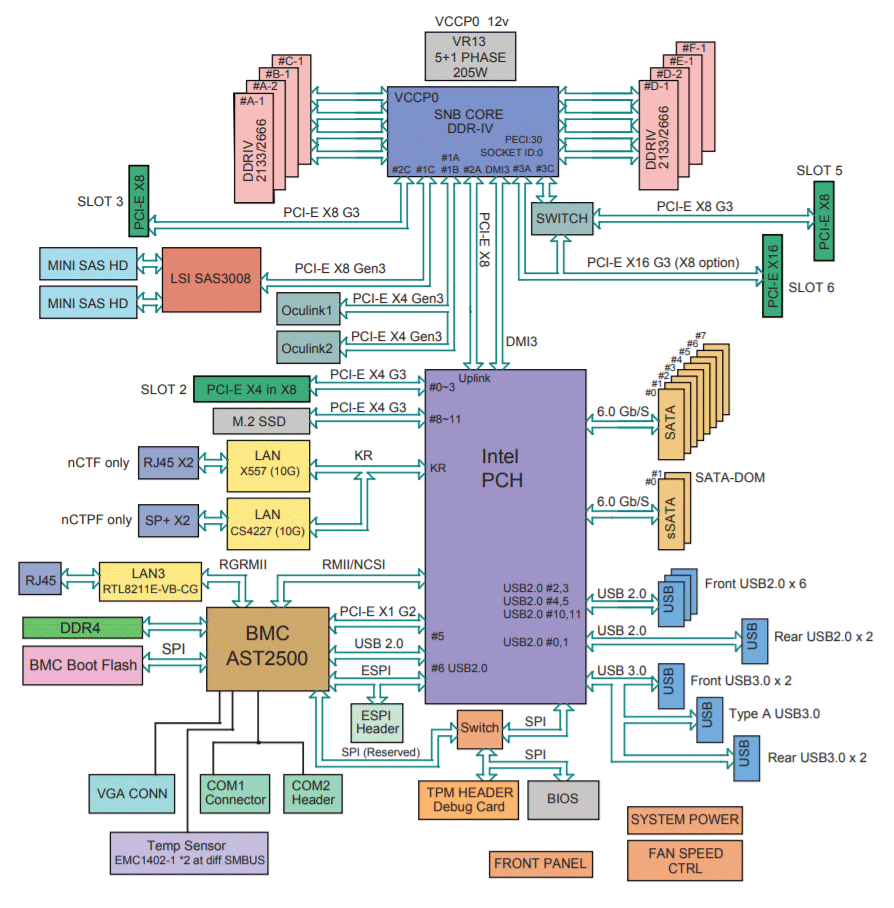

Block Diagram

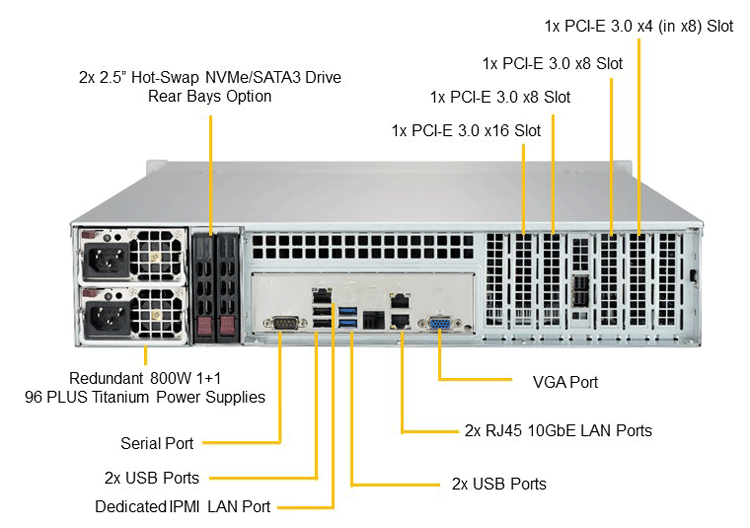

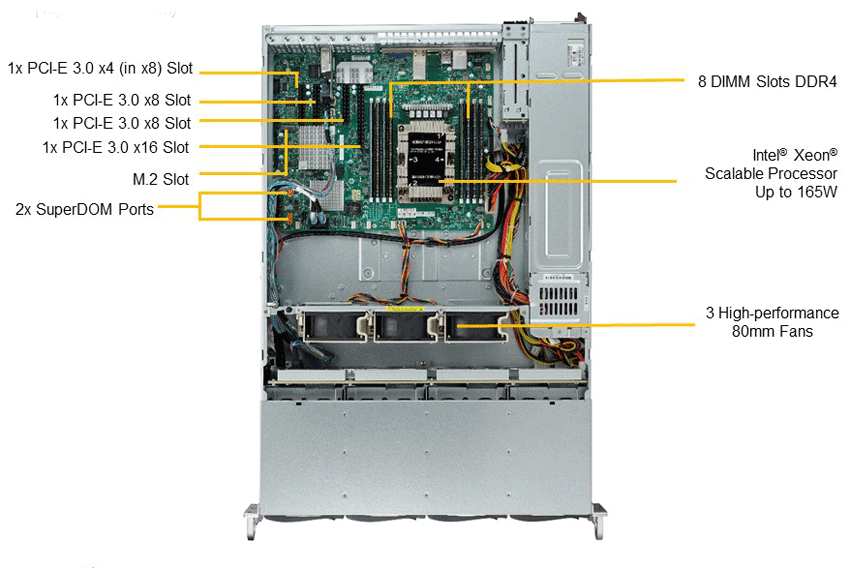

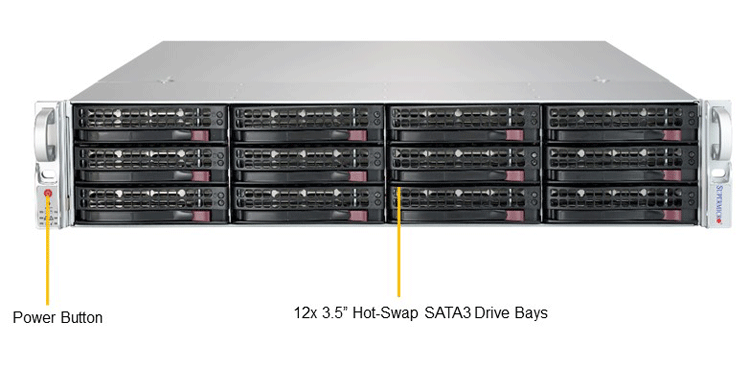

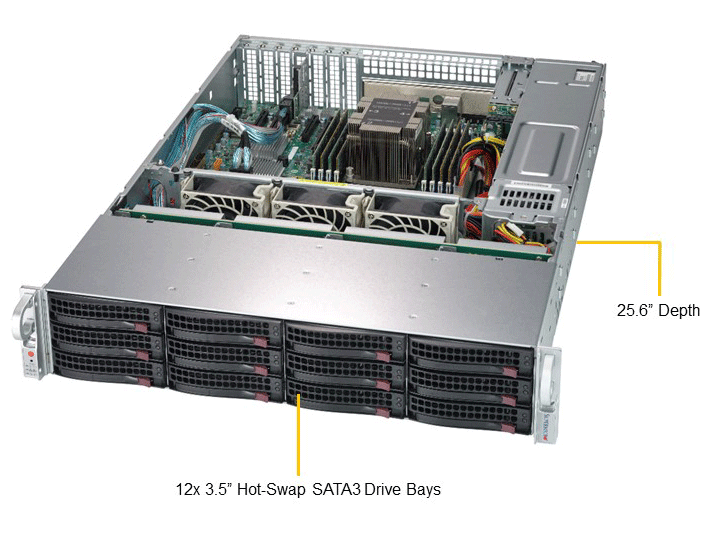

Images
