Colfax CX4110LPs-S36-JBOD-X7 4U Rackmount Server



  • 1x Intel® Xeon® Scalable Processor
  • 36x 3.5" Hot-Swap SAS/SATA Drive Bays (24 Front + 12 Rear)
  • 2x 2.5" Hot-Swap Rear NVMe/SATA Drive Bays
  • Broadcom 3008 SAS3 Controller: IT Mode

Features

  • 1x Intel® Xeon® Scalable Processor (Download Intel® Xeon® Scalable Processor Matrix)
  • Intel C621 Chipset
  • 8x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots
    - 1x PCI-E 3.0 x16 Slot
    - 2x PCI-E 3.0 x8 Slots
    - 1 PCI-E 3.0 x4 Slot (in x8)
  • 36x 3.5" Hot-Swap SAS/SATA Drive Bays (24 Front + 12 Rear)
  • 2x 2.5" Hot-Swap Rear NVMe/SATA Drive Bays
  • Integrated Broadcom 3008 SAS3 (12Gbps) Controller; IT Mode
  • Dual 10GBase-T LAN with Intel® X722 + X557
  • 1200W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Single Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (Up to 165W TDP)
Memory • 8x DDR4 DIMM slots
• Up to 1TB ECC 3DS LRDIMM, 256GB ECC RDIMM, DDR4 up to 2666MHz
• 2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C622
I/O Expansion • 1x PCI-E 3.0 x16
• 2x PCI-E 3.0 x8
• 1x PCI-E 3.0 x4 (in x8)
Onboard Devices SATA
• SATA3 (6Gbps) via C622 controller
• RAID 0, 1, 5, 10 support
SAS
•SAS3 (12Gbps) via Broadcom 3008
• SW RAID 0, 1, 10
Network Controllers
• Dual 10GBase-T LAN with Intel® X722 + X557
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC
Input / Output LAN
• 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x USB 3.0 ports (rear)
• 2x USB 2.0 ports (rear)
VGA
• 1x VGA port
Serial Port / Header
• 2x COM Ports (1 rear, 1 header)
Chassis Form Factor • 4U Rackmount
• Dimension: 17.2"W (437mm) x 7" (178mm) x 27.5" (699mm)
Power Supply • 1200W Redundant Power Supplies with PMBus
Total Output Power
• 1000W/1200W
Input
• 100-127Vac / 15-12A / 50-60Hz
• 200-240Vac / 8.5-7A / 50-60Hz
+12V
• Max: 83A / Min: 0A (100-127Vac)
• Max: 100A / Min: 0A (200-240Vac)
+5V sb
• Max: 4A / Min: 0A
Certification
• 80PLUS Titanium Certified
Storage • 36x hot-swap 3.5" SAS/SATA drive bays 24 front + 12 rear)
• 2x hot-swap 2.5" NVMe/SATA drive bays (rear)
M.2
• M.2 Interface: PCI-E 3.0 x4 and SATA
• Form Factor: 2280
• Key: M-Key
• Double Height Connector
Backplane • SAS3 / SATA3 single expander per backplane
System Cooling • 7 high-performance 80mm cooling fans
Front Panel Buttons
• Power On/Off button
• System Reset button
LEDs
• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Information LED
• Power fail LED
BIOS • AMI UEFI


Block Diagram

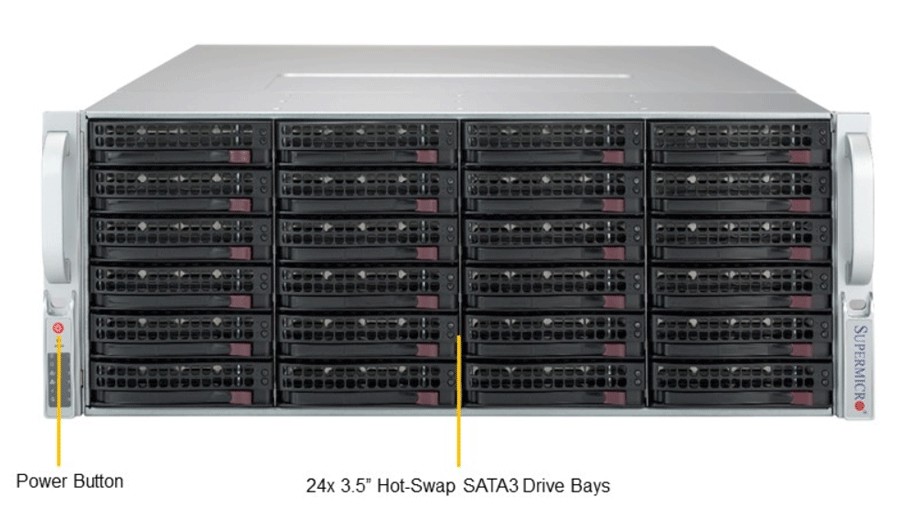

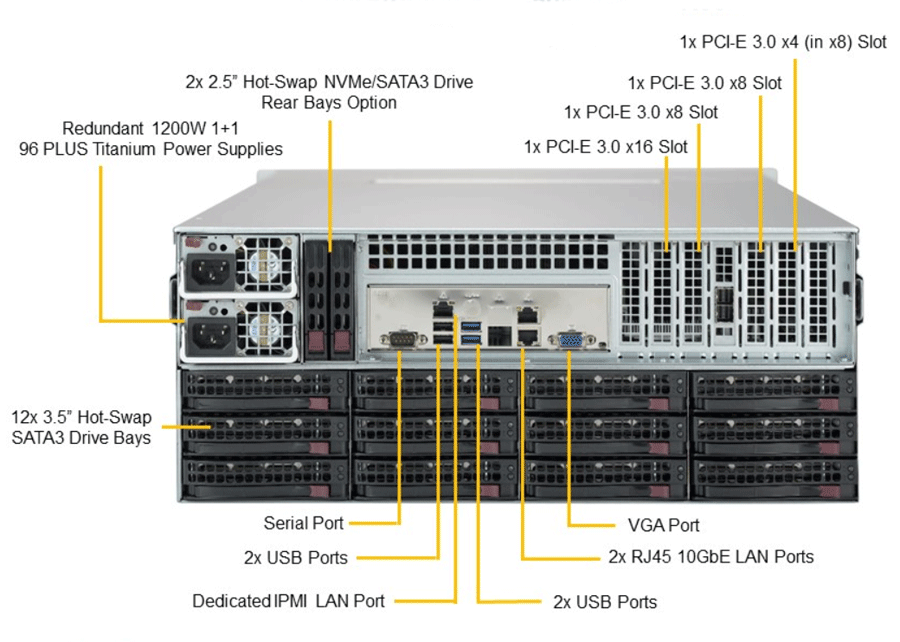

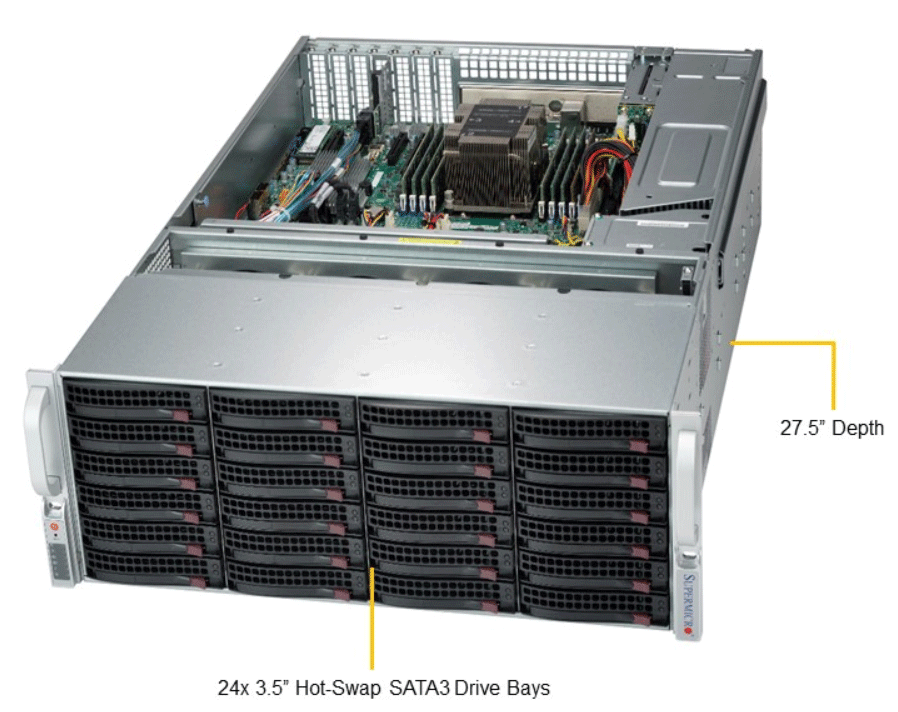

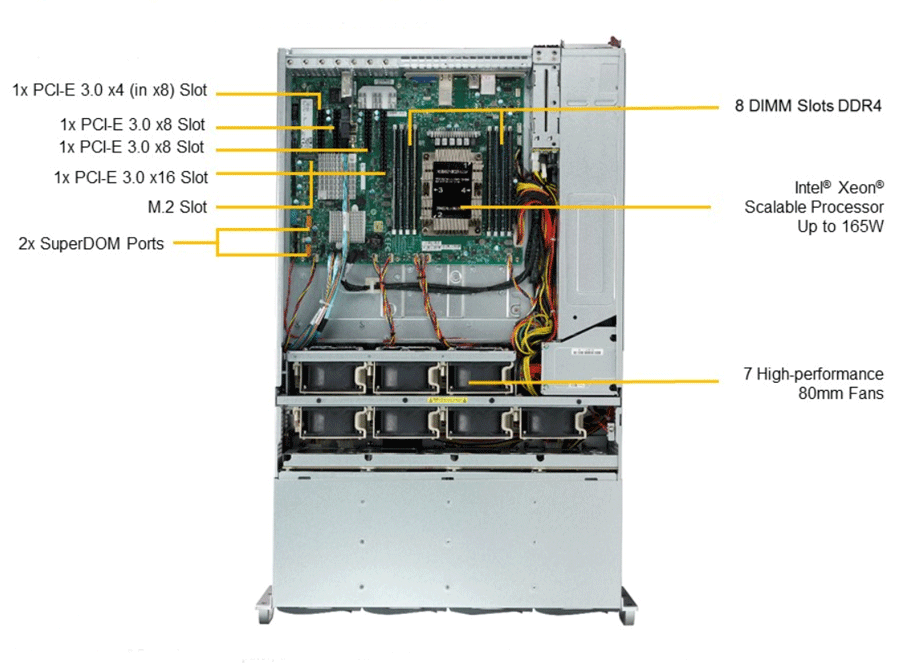

Images
