Colfax CX4210LPs-S60-JBOD-X7 4U Rackmount Server



  • 2x Intel® Xeon® Scalable Processors
  • 60x 3.5" Hot-Swap SAS3 Drive Bays
  • 2x 2.5" Hot-Swap Rear SATA3 Drive Bays
  • 6x NVMe Bays
  • Broadcom 3008 SAS3 Controller

Features

  • 2x Intel® Xeon® Scalable Processors (Download Intel® Xeon® Scalable Processor Matrix)
  • Intel C621 Chipset
  • 24x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots
    - 2x PCI-E 3.0 x16 Slots
    - 1x PCI-E 3.0 x8 Slot
    - 1x PCI-E 3.0 x8 Slot for Add-on-Module (AOM) SAS Controller
  • 60x 3.5" Hot-Swap SAS3 12Gb/s Drive Bays
  • 2x 2.5" Hot-Swap Rear SATA3 Drive Bays
  • 6x NVMe Bays
  • Integrated Broadcom 3008 SAS3 (12Gbps) Controller; IT Mode
  • 2000W Redundant Power Supply, 80PLUS Platinum
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Dual Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (70-205W TDP)
Memory • 24x DDR4 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
• 2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C621
I/O Expansion • 2x PCI-E 3.0 x16
• 2x PCI-E 3.0 x8 (1 for AOM)
Onboard Devices SATA
• SATA3 (6Gbps) via C621 controller
• RAID 0, 1, 5, 10 support
SAS
• Broadcom 3008 SAS3 (12Gbps) Controller; IT Mode
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC
Input / Output LAN
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x USB 3.0 ports (rear)
• 1x Type A
VGA
• 1x VGA port
Serial Port / Header
• 1 Fast UART 16550 port / 1 Header
Chassis Form Factor • 4U Rackmount
• Dimension: 17.2"W (437mm) x 7" (178mm) x 30.2" (767mm)
Power Supply • 2000W 1U Redundant Power Supplies with PMBus
Total Output Power
• 1000W/1800W/1980W/2000W
Input
• 100-120Vac / 12.5-9.5A / 50-60Hz
• 200-220Vac / 10-9.5A / 50-60Hz
• 220-230Vac / 10-9.8A / 50-60Hz
• 230-240Vac / 10-9.8A / 50-60Hz
• 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V
• MMax: 83.3A / Min: 0A (100-120Vac)
• Max: 150A / Min: 0A (200-220Vac)
• Max: 165A / Min: 0A (220-230Vac)
• Max: 166.7A / Min: 0A (230-240Vac)
• Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12V sb
• Max: 2.1A / Min: 0.2A
Certification
• 80PLUS Titanium Certified
Storage • 60x hot-swap 3.5" SAS3/SATA3 drive bays
• 2x hot-swap 2.5" SATA3 drive bays (rear)
• 6x NVMe bays (optional)
Backplane • 2x 30-port 4U 946S top-load SAS3 12Gbps single-expander midplane, supports up to 30x 3.5-inch SAS3/SATA3 HDD/SSD
• 2-port 2U SAS3 12Gbps backplane, supports up to 2x 2.5-inch SAS3/SATA3 HDDs/SSDs
System Cooling • 5 x 80mm high-performance fans
Front Panel Buttons
• Power switch
• System Reset button
LEDs
• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED
• Power fail LED
BIOS • AMI UEFI

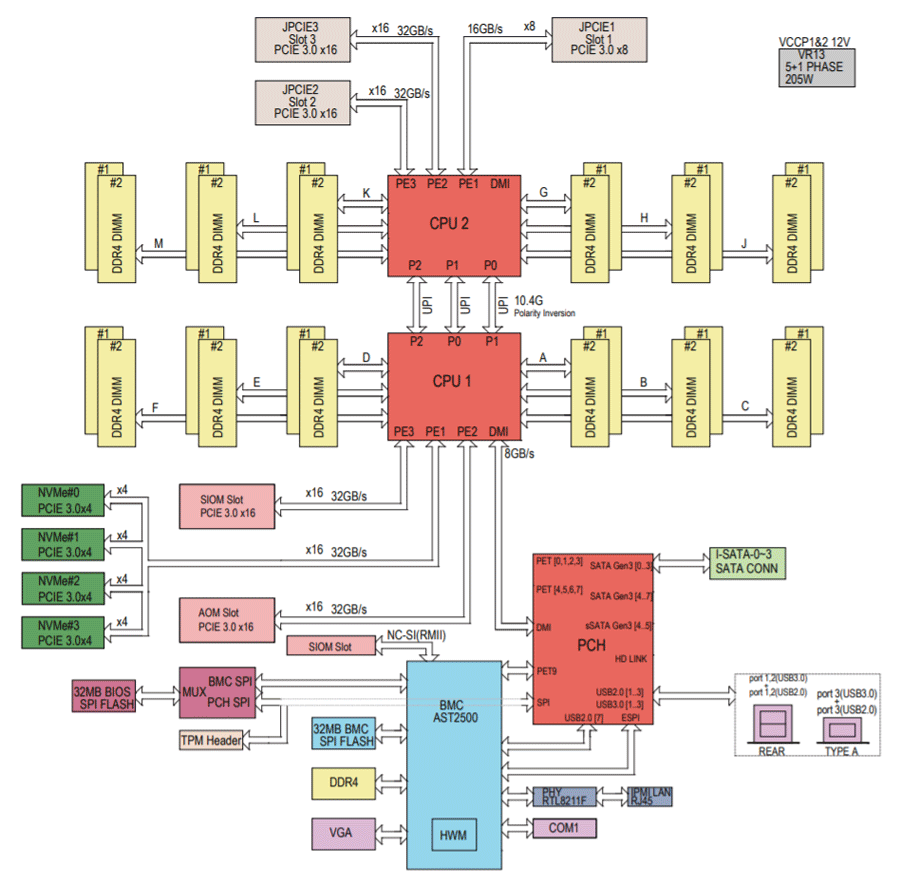

Block Diagram

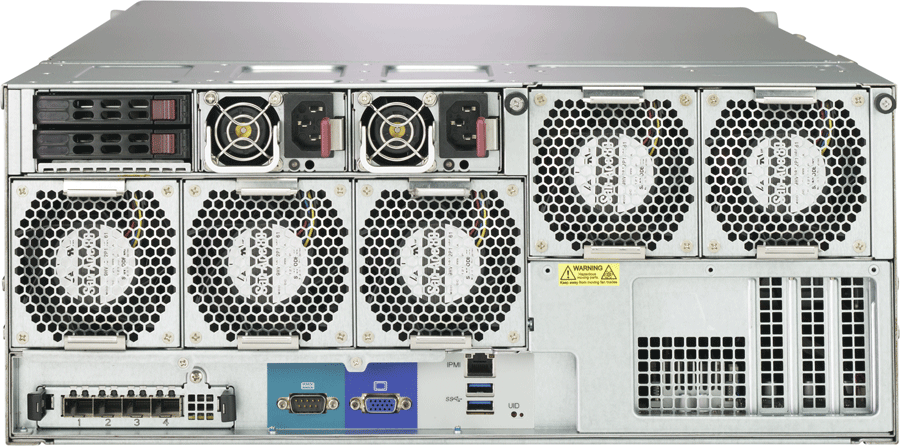

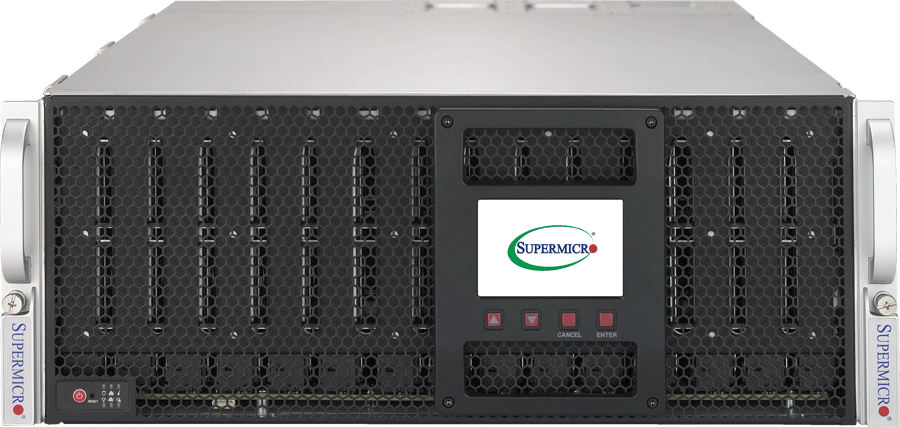

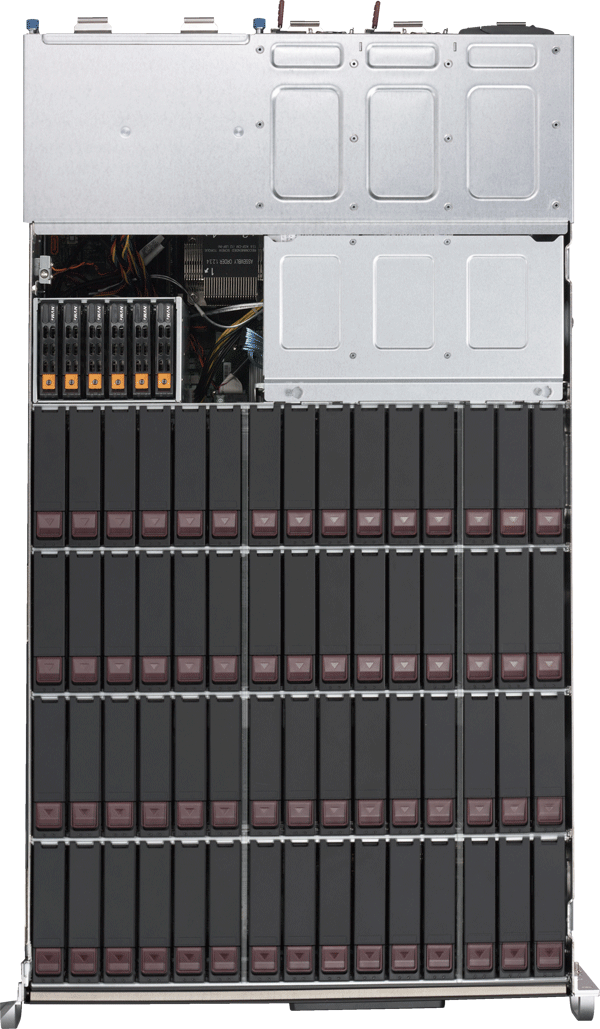

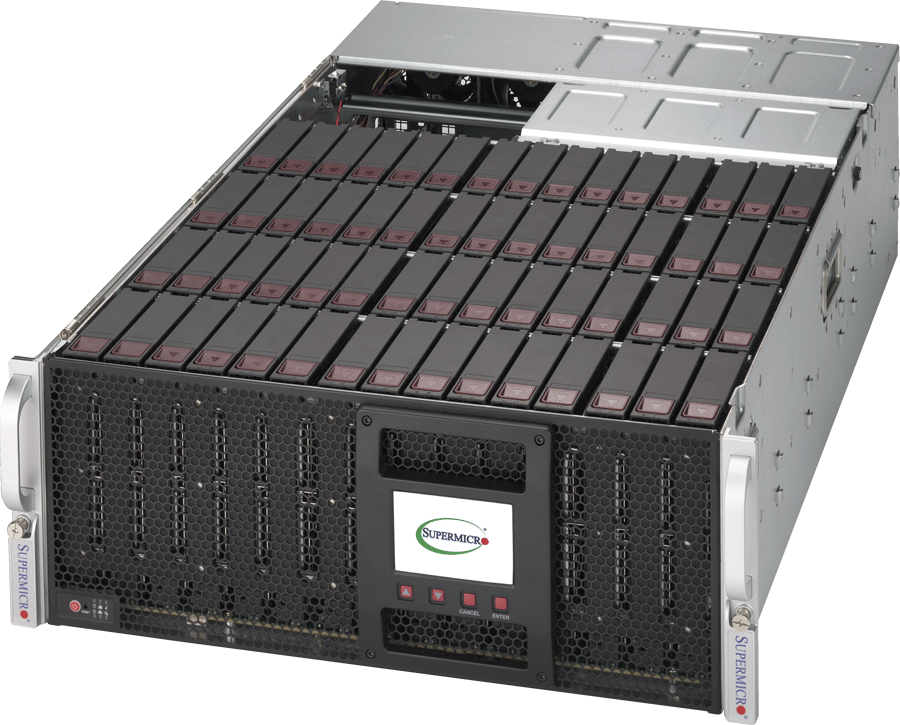

Images
