Colfax AI Edgeâ„¢ Nano Z370 Workstation

The Colfax AI Edgeâ„¢ Nano Z370 is a powerful deep-learning workstation in an extremely small footprint.

The workstation that fits your workspace
		From efficient space utilization to innovative features, the Nano Z370 delivers a compact housing that packs plenty of power. Due to its small footprint and versatile placement, the Nano Z370 just fits in.

Smaller package. Bigger punch

Powerful processors, graphics, memory, and SSDs make the Nano Z370 a true workstation-class solution allowing you to handle your growing workloads while still balancing your budget.

KEY FEATURES

CPU	Memory
8th Gen Intel® Coreâ„¢ i7/i5 K-Series Processor	2x DIMMS
GPU	Storage
NVIDIA TITAN Xp/TITAN V/Quadro® GV100/GP100 GPU	1x SATA + 1x M.2 SSD

Out-of-the-box performance
		The Nano Z370 is pre-loaded with Ubuntu, CUDA SDK/Toolkit, and CuDNN. Optionally, we can pre-configure docker containers using Nvidia docker with preferred DL framework.

Technical Specifications


Motherboard	• Asus ROG STRIX Z370-I GAMING
CPU	• Supports Intel® Socket 1151 for 8th Generation Coreâ„¢ Processors • Supports Intel® 14 nm CPU • Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types
Chipset	Intel® Z370
Memory	• 2x DDR4 DIMM sockets (Max. 32GB) • 4333 (O.C.) / 4200 (O.C.) / 4000 (O.C.) / 3866 (O.C.) / 3600 (O.C.) / 3333 (O.C.) / 3300 (O.C.) / 3200 (O.C.) / 2800 (O.C.) / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory • Dual Channel Memory Architecture • Support for Intel® Extreme Memory Profile (Intel® XMP) WARNING: Altering PC memory frequency, voltage and/or latency may: (i) reduce system stability and useful life of the system, memory and processor; (ii) cause the processor and other system components to fail; (iii) cause reductions in system performance; (iv) cause additional heat or other damage; and (v) affect system data integrity. Colfax has not tested, and does not warranty, the operation of the memory beyond its specifications. Colfax assumes no responsibility that the memory, including if used with altered clock frequencies and/or voltages, will be fit for any particular purpose.
Expansion Slots	• 1 x PCIe 3.0 x16
Integrated LAN	• Intel® I219V
Storage	Intel® Z370 chipset: • 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) • 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) • 4 x SATA 6Gb/s port(s) • Supports Raid 0, 1, 5, 10 • Supports Intel® Rapid Storage Technology • Supports Intel® Smart Response Technology¹ • Intel® Optaneâ„¢ Memory Ready² ¹ This function will work depending on the CPU installed ² Intel® Optane Technology only supported when using 8th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support
Audio	• SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback • Audio Features: - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III
USB Ports	Intel® Z370 Chipset : • 6 x USB 3.1 Gen 1 port(s) (4 at back panel, 2 at mid-board) • 6 x USB 2.0 port(s) (4 at back panel, 2 at mid-board) ASMedia® USB 3.1 Gen 2 controller: • 1 x USB 3.1 Gen 2 front panel connector port(s) (Supports 3A power output)
Back I/O Ports	• 1 x DisplayPort • 1 x HDMI • 1 x LAN (RJ45) port(s) • 4 x USB 3.1 Gen 1 • 4 x USB 2.0 • 1 x Optical S/PDIF out • 5 x Audio jack(s) • 1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module
Internal I/O Ports	• 1 x Aura Addressable Strip Header(s) • 1 x AAFP connector • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) • 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) • 4 x SATA 6Gb/s connector(s) • 1 x CPU Fan connector(s) • 1 x Chassis Fan connector(s) • 1 x AIO_PUMP connector • 1 x 24-pin EATX Power connector(s) • 1 x 8-pin ATX Power connector • 1 x System panel(s) • 1 x Clear CMOS jumper(s) • 1 x T_Sensor Connector • 1 x USB 3.1 Gen 2 front panel connector • 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) • 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

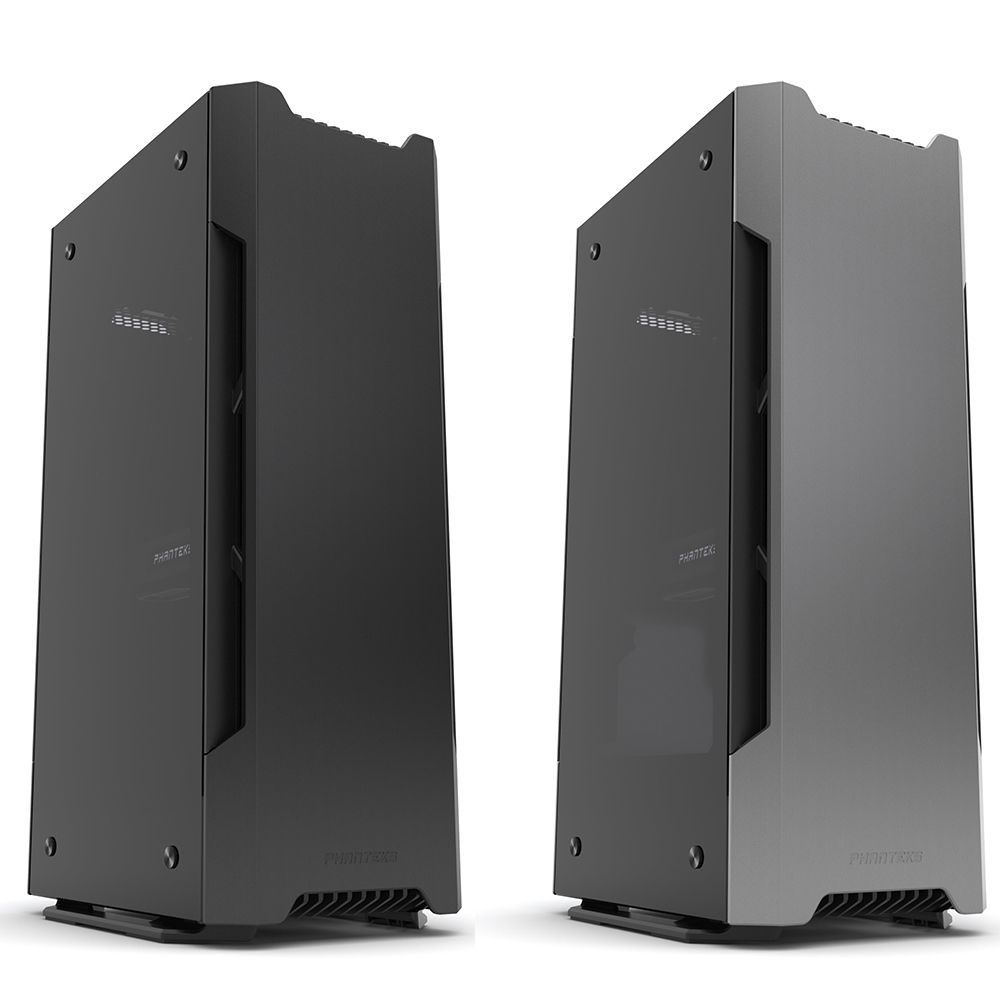

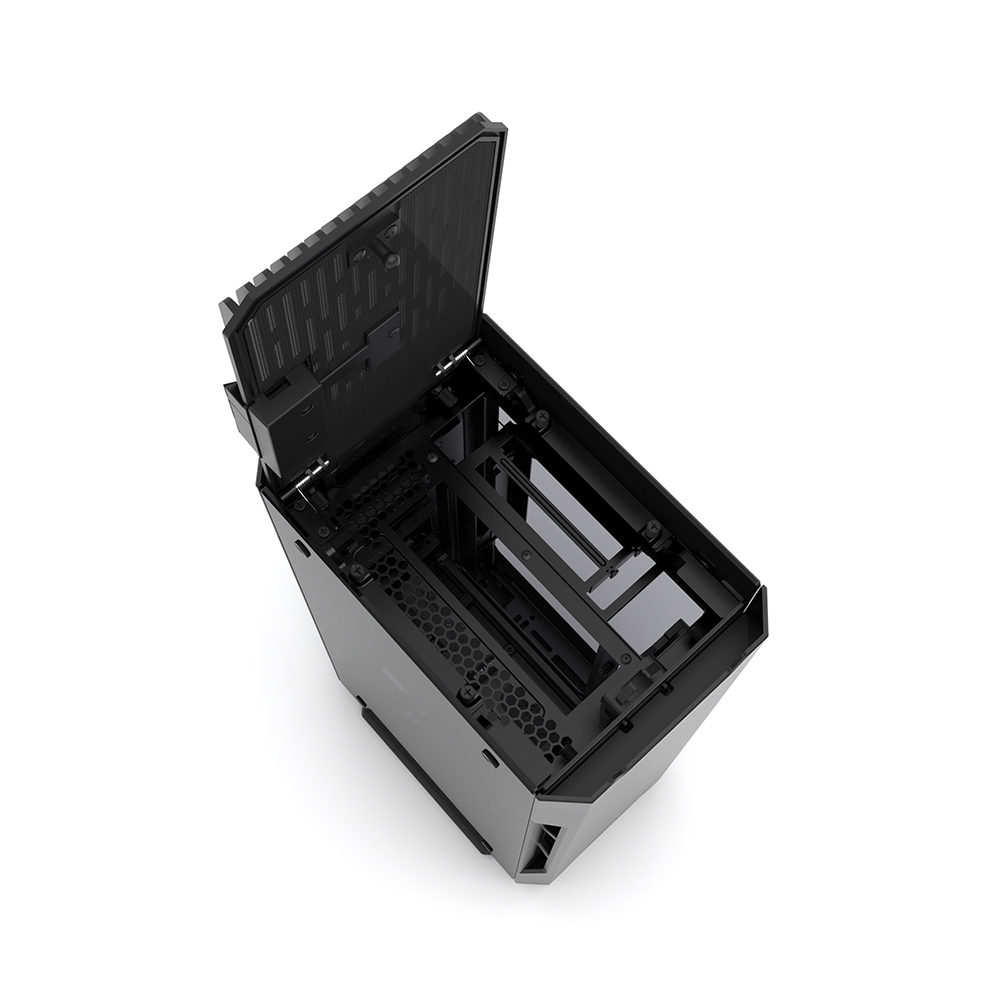

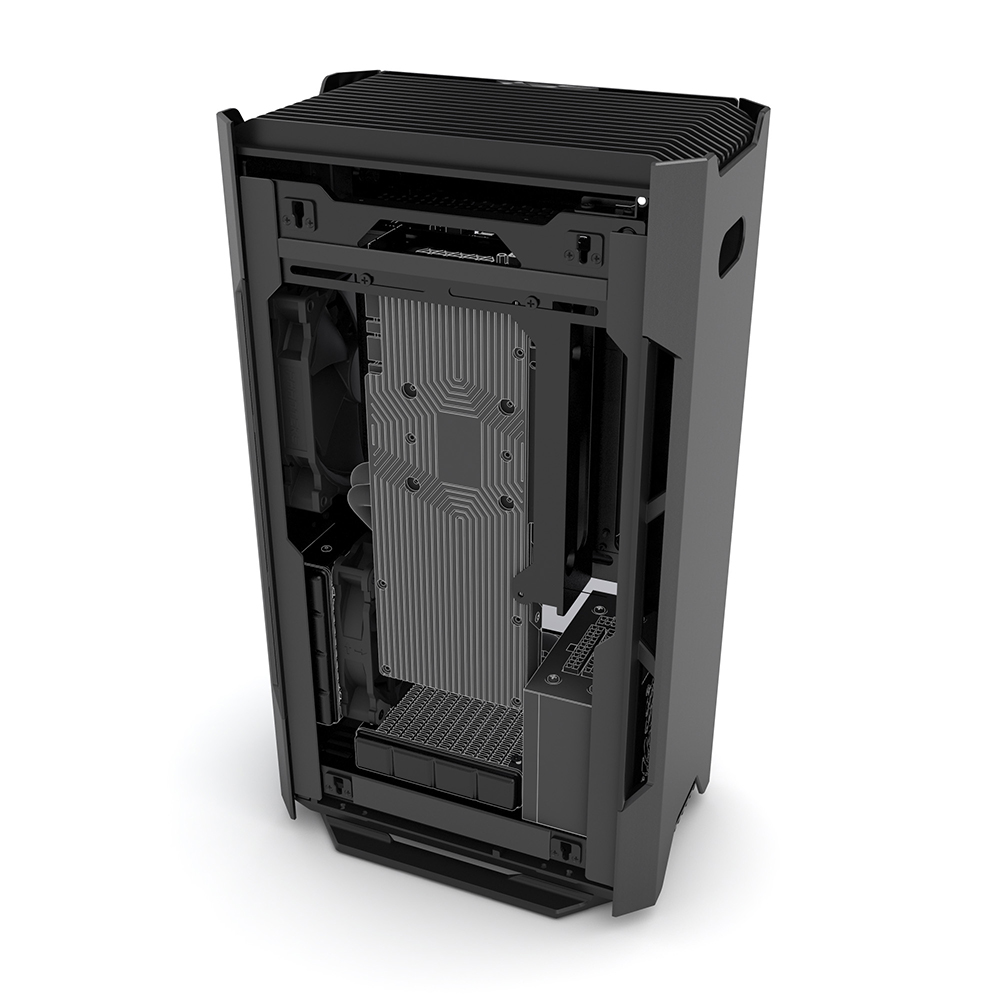

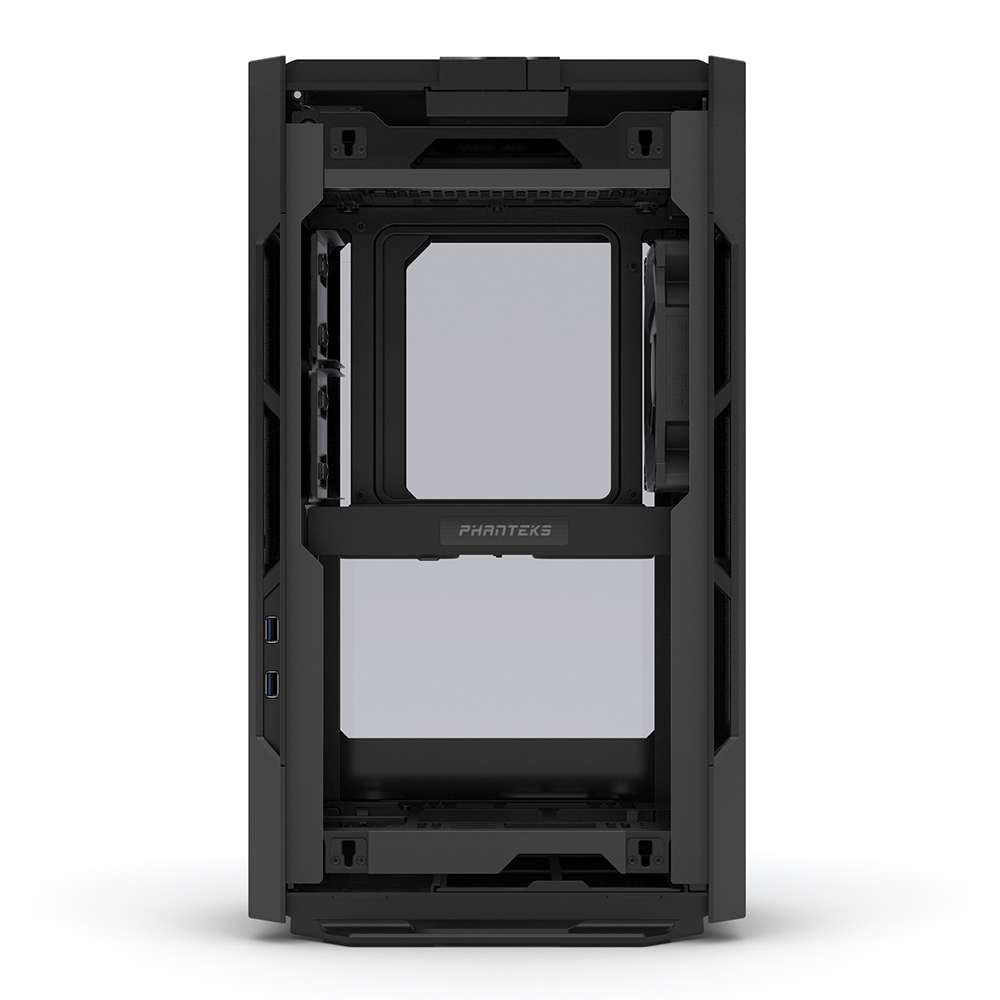

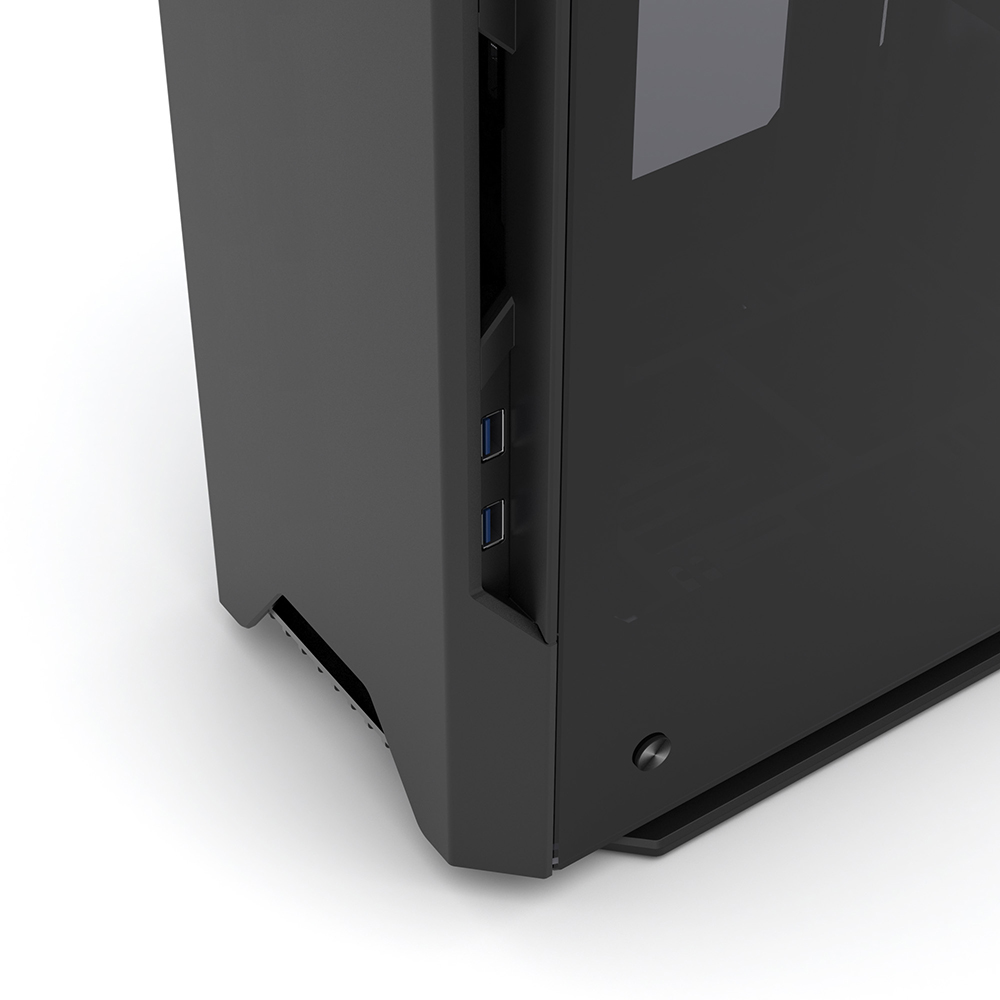

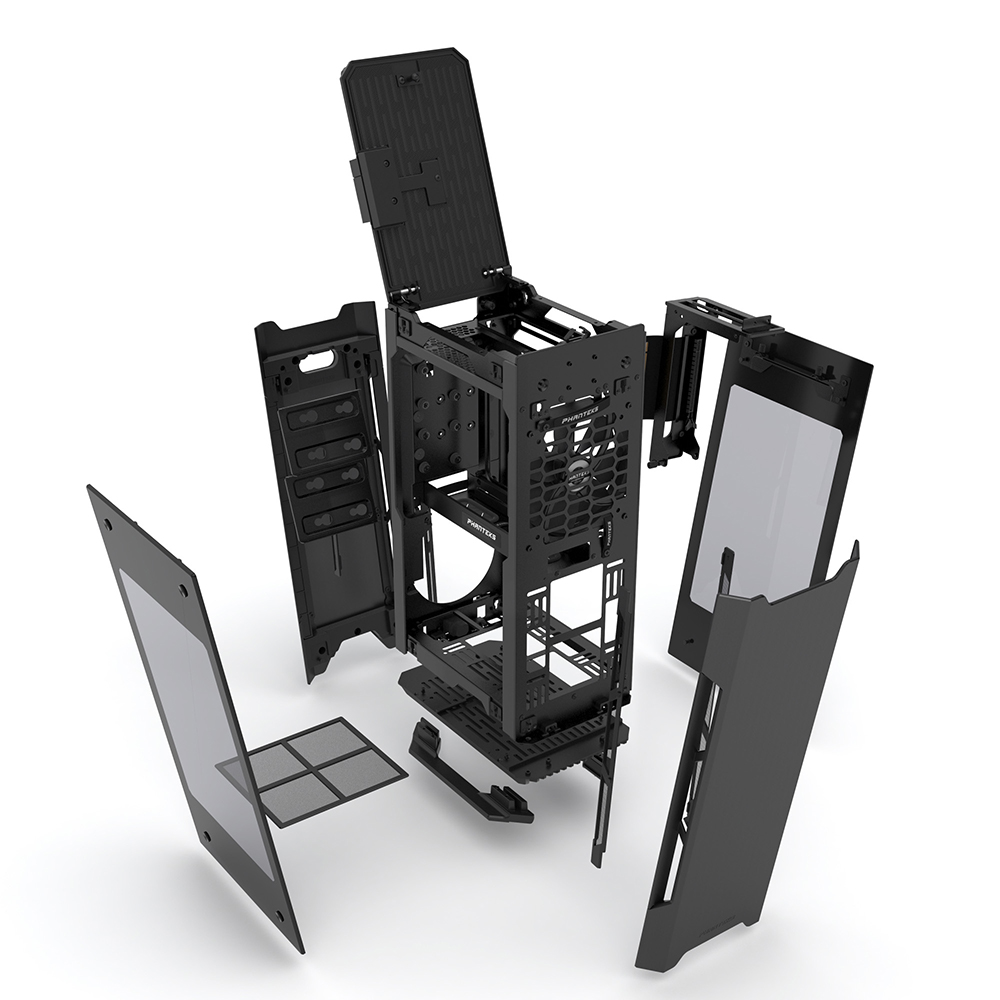

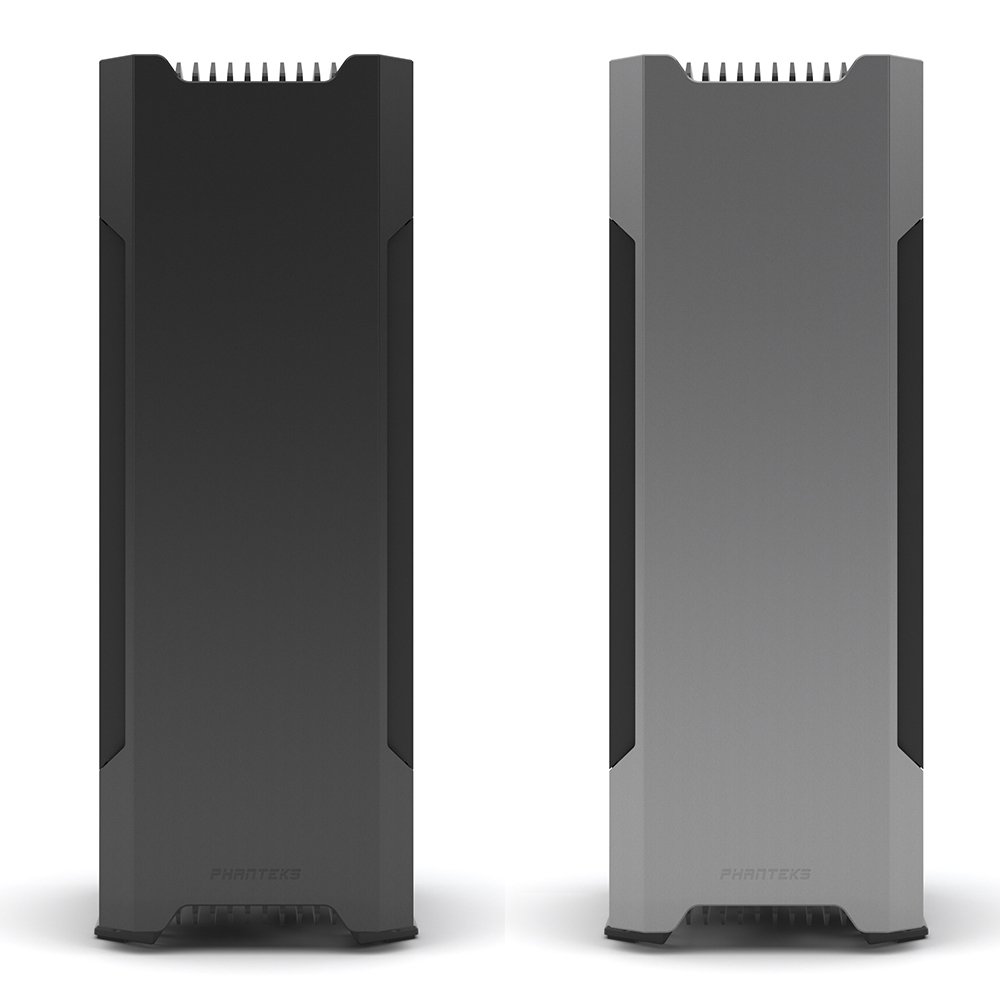

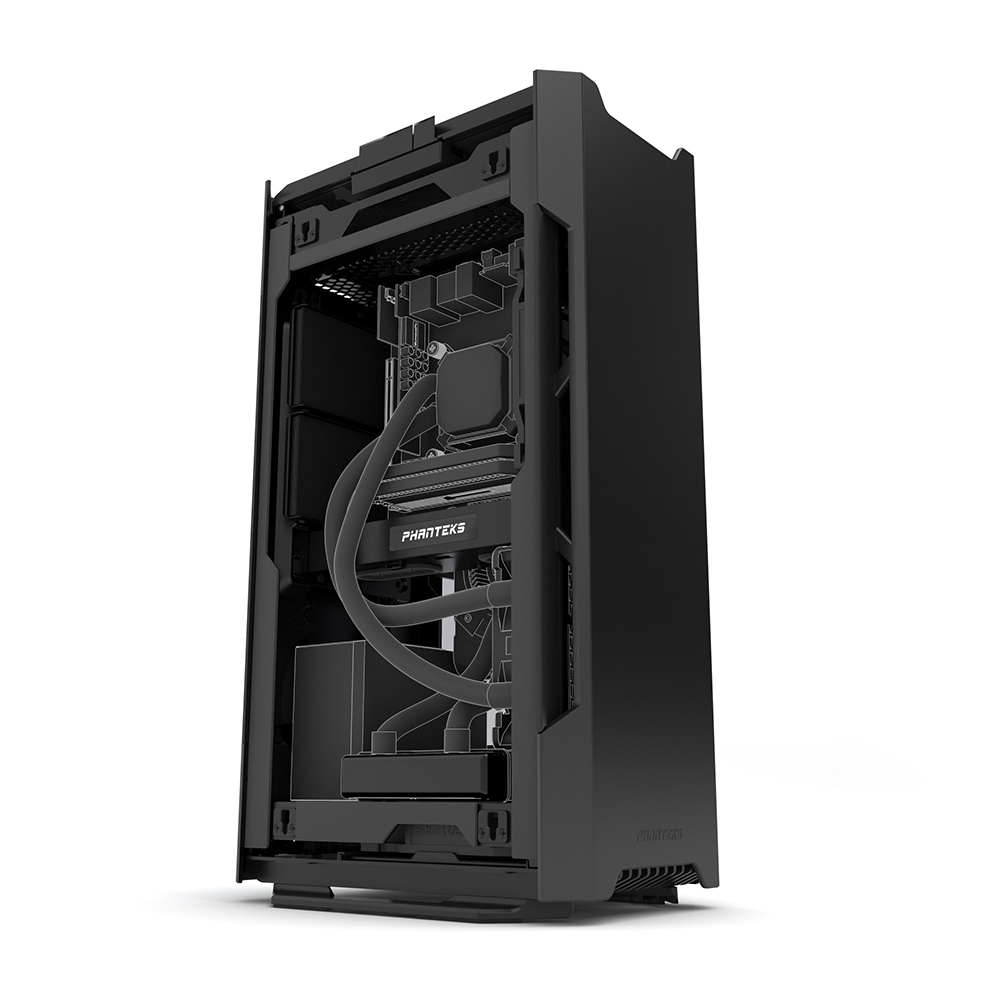

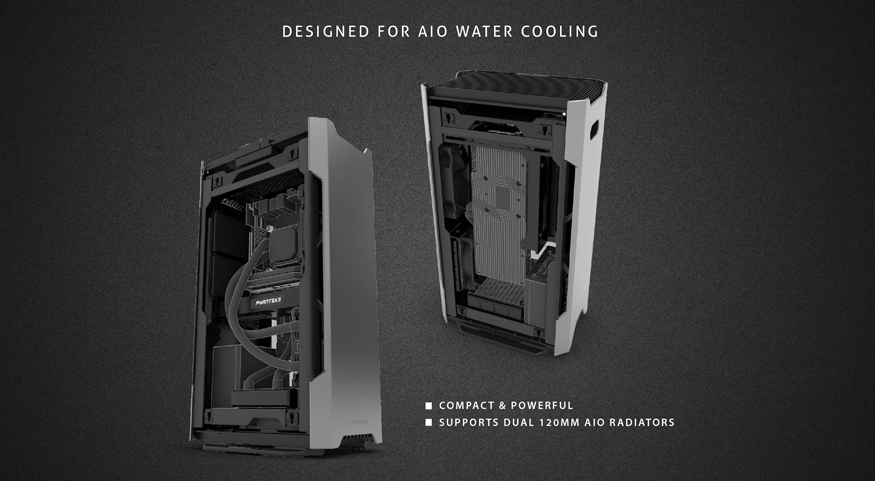

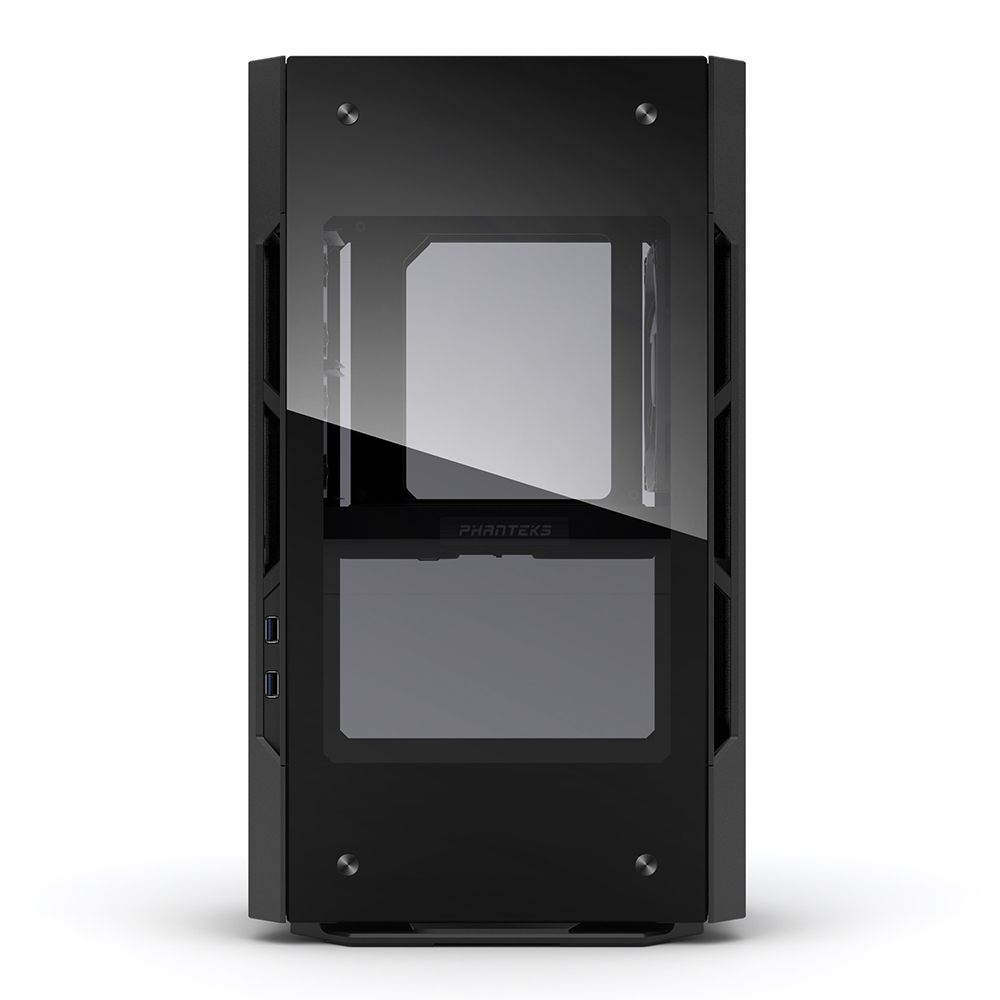

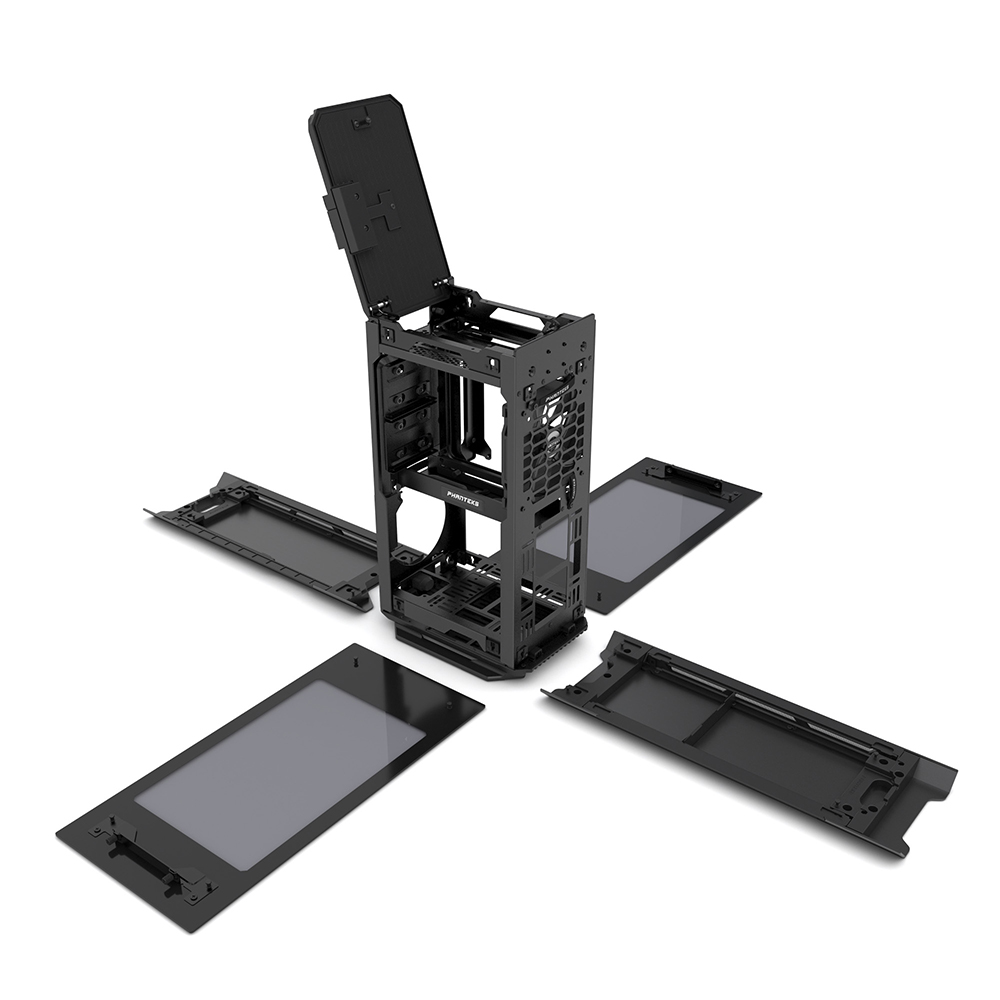

Chassis	Phanteks Enthoo Evolv Shift • Satin Black / Anthracite Gray • Small Form Factor • Mini ITX motherboard support • Anodized aluminum panels, Power coated steel chassis, Tempered glass panels • Side Window - Dual tempered glass • Drive Bays - 1 x Internal 3.5â€ - 3 x Internal 2.5" (2x included) • 2 expansion slots • Front I/O - 2x USB 3.0, Power Button, RGB Button • Fans: Front - 2 x 120 mm - 2 x 140 mm (1x installed) Bottom - 1 x 120 mm - 1 x 140 mm • Radiator: Front - 120mm Bottom - 120mm • Clearance Graphic Card Length - 350mm (13.8") CPU Cooler - 82mm (3.2") Bottom Radiator - 55mm (2.2") • Dimensions: - 170 mm x 470 mm x 274 mm (W x H x D) - 6.7" x 18.5" x 10.8"

Images

$546.25

	Qty.	Colfax AI Edge Nano Z370 Workstation, Cost As Configured $546.25
Motherboard	1
Primary CPU	1
CPU Cooler	1
Socket 1	1	Set next items ( ) like this
Socket 2	1
Chassis	1
Power Supply	1
M.2 SSD Drive	1
SSD Drive	1
Nvidia GPU	1
LCD Panel	1
Operating System SW	1
		Colfax AI Edge Nano Z370 Workstation, Cost As Configured $546.25
