Colfax ProEdge™ SX3000 Pedestal Server/Workstation



  • Single Intel® Xeon® Scalable / Intel® Xeon® W-33xx Processor
  • 8x DIMMs Supporting DDR4 Memory
  • 4x HDDs/SSDs & 1x M.2 NVMe SSD
  • Noctua NH-U14S DX-4189 Premium CPU Cooler

Features

  • Single Intel® Xeon® Scalable / Intel® Xeon® W-33xx Processor
  • Intel® C621A Chipset
  • Noctua NH-U14S DX-4189 Premium CPU Cooler
  • 8x DIMMs Supporting DDR4 ECC RDIMM/LRDIMM
  • Expansion Options
    - 3x PCIe 4.0 x16 Slots (x16 or x8)
    - 3x PCIe 4.0 x16 Slots (x0 or x8)
    - 1x PCIe 4.0 x16 Slot
  • On-board Video
  • Up to 4 Fixed SATA HDDs/SSDs
  • 1x M.2 NVMe SSD
  • Integrated 2x 1GbE LAN Ports
  • 1x RJ45 Dedicated IPMI LAN Port
  • Corsair 4000D AIRFLOW Tempered Glass / 4000D Tempered Glass Mid-Tower ATX Chassis



Technical Specifications

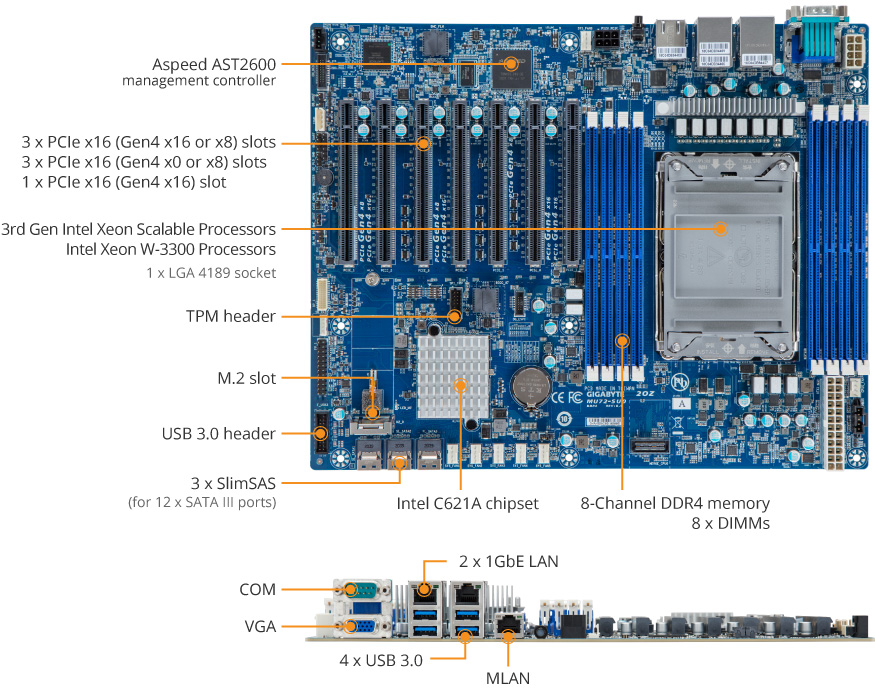

Motherboard • GIGABYTE MU72-SU0
CPU • Single Socket P+ (LGA 4189)
• Supports 1x 3rd Gen Intel® Xeon® Scalable / Intel® Xeon® W-33xx Processor
• CPU TDP up to 270W
Chipset Intel® C621A
Memory • 8x DDR4 DIMM sockets
• RDIMM/LRDIMM: up to 128GB
• 3DS RDIMM/LRDIMM: up to 256GB
• 1.2V modules: 3200/2933/2666 MHz
Expansion Slots • Slot_7: 1 x PCIe x16 (Gen4 x16 bus) slot
• Slot_6: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_5
• Slot_5: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot
• Slot_4: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_3
• Slot_3: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot
• Slot_2: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_1
• Slot_1: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot
M.2 • 1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports NGFF-2280 cards
LAN • 2 x 1Gb/s LAN ports ( Intel® I210-AT)
• 1 x 10/100/1000 management LAN
Management BMC Controller
• ASPEED AST2500
IPMI Dedicated LAN
• 1x Realtek RTL8211E for dedicated management
Features
• Watch Dog
• NMI
Graphics • ASPEED AST2600
• 2D Video Graphic Adapter with PCIe bus interface
• 1920x1200@60Hz 32bpp, DDR4 SDRAM
TPM • 1 x TPM header with SPI interface
• Optional TPM2.0 kit: CTM010
Rear I/O Ports • 4 x USB 3.0
• 1 x VGA
• 1 x COM
• 2 x RJ45
• 1 x MLAN
• 1 x ID button with LED
Internal I/O • 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 6-pin ATX 12V power connector ( for PCIe slot)
• 3 x SlimSAS connectors
• 1 x M.2 slot
• 1 x CPU fan header
• 6 x System fan headers
• 1 x USB 3.0 header
• 1 x TPM header
• 1 x VROC connector
• 1 x Front panel header
• 1 x Buzzer
Chassis 4000D AIRFLOW Tempered Glass Mid-Tower
• Form Factor
- Mid Tower
• Case Material
- Steel, Tempered Glass, Plastic
• Case Windowed
- Tempered Glass
• Dimensions
- 453mm L x 230mm W x 466mm H
• Maximum GPU Length
- 360mm
• Maximum PSU Length
- 220mm
• Maximum CPU Cooler Height
- 170mm
• Expansion Slots
- 7 vertical + 2 horizontal
• Drive Bays
- 2 x 3.5"
- 2 x 2.5"
• Front I/O
- (1x) USB 3.1 Type C, (1x) USB 3.0, (1x) Audio in/out
• Radiator Compatibility:
- 120mm, 140mm, 240mm, 280mm, 360mm
• Compatible Corsair Liquid Coolers
- H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i

4000D Tempered Glass Mid-Tower
• Form Factor
- Mid Tower
• Case Material
- Steel, Tempered Glass, Plastic
• Case Windowed
- Tempered Glass
• Dimensions
- 453mm L x 230mm W x 466mm H
• Maximum GPU Length
- 360mm
• Maximum PSU Length
- 220mm
• Maximum CPU Cooler Height
- 170mm
• Expansion Slots
- 7 vertical + 2 horizontal
• Drive Bays
- 2 x 3.5"
- 2 x 2.5"
• Front I/O
- (1x) USB 3.1 Type C, (1x) USB 3.0, (1x) Audio in/out
• Radiator Compatibility:
- 120mm, 140mm, 240mm, 280mm, 360mm
• Compatible Corsair Liquid Coolers
- H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i

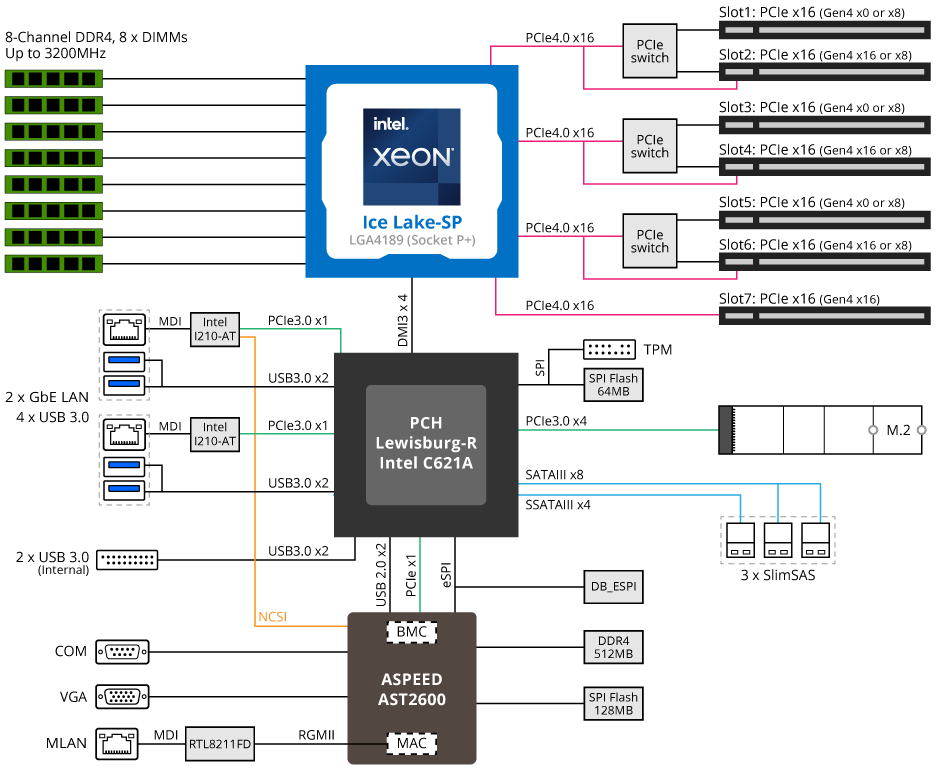

Block Diagram

Images

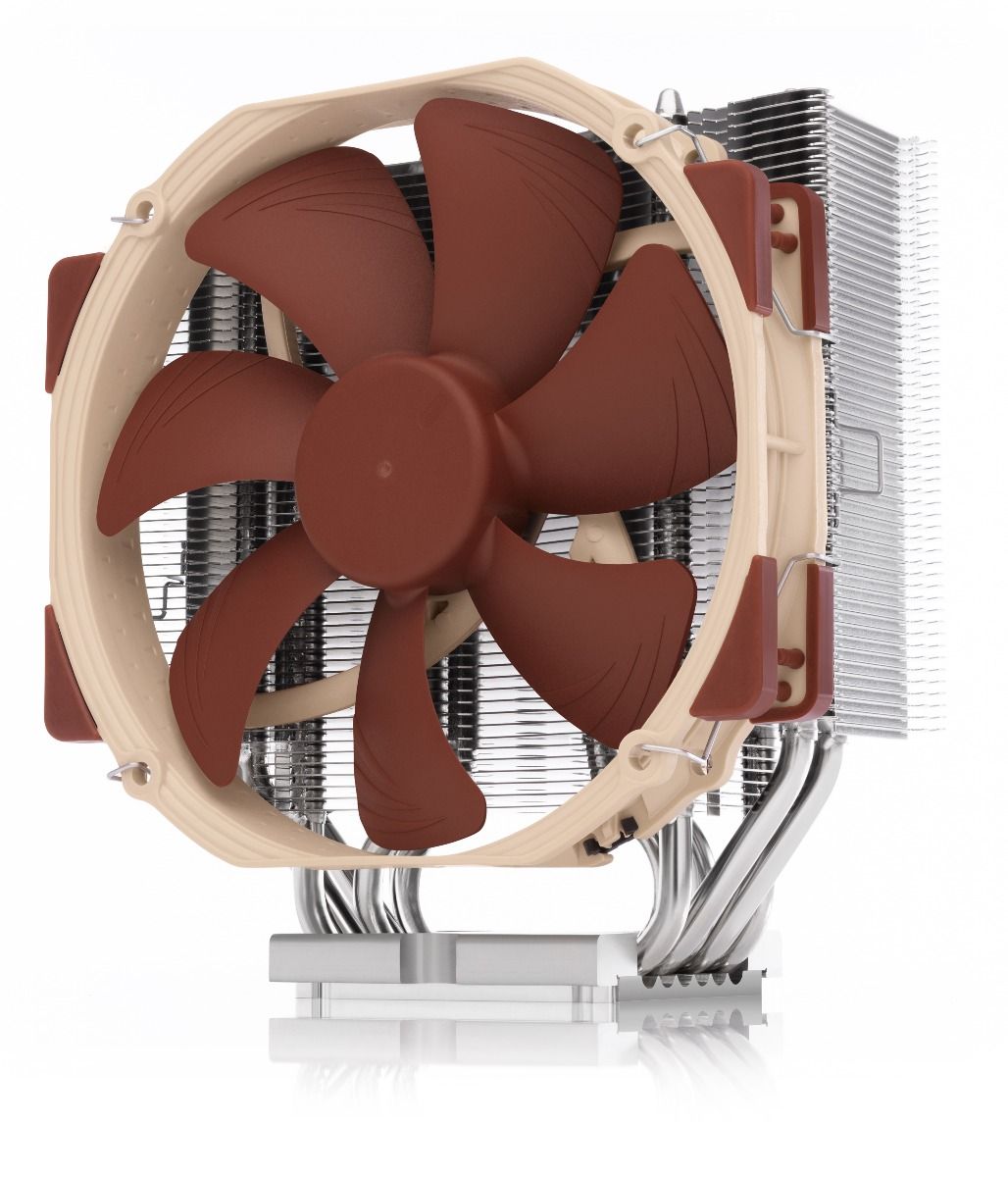

Noctua NH-U14S DX-4189 CPU Cooler



Corsair 4000D AIRFLOW Tempered Glass Mid-Tower ATX




Corsair 4000D Tempered Glass Mid-Tower ATX
