Colfax ProEdge™ SX3300 Pedestal Server/Workstation



  • Single Intel® Xeon® Scalable / Intel® Xeon® W-33xx Processor
  • 8x DIMMs Supporting DDR4 Memory
  • 4x HDDs/SSDs & 1x M.2 NVMe SSD
  • Noctua NH-U14S DX-4189 Premium CPU Cooler

Features

  • Single Intel® Xeon® Scalable / Intel® Xeon® W-33xx Processor
  • Intel® C621A Chipset
  • Noctua NH-U14S DX-4189 Premium CPU Cooler
  • 8x DIMMs Supporting DDR4 ECC RDIMM/LRDIMM
  • Expansion Options
    - 4x PCIe 4.0 x16
    - 3x PCIe 4.0 x8
  • On-board Video
  • Up to 4 Fixed SATA HDDs/SSDs
  • 1x M.2 NVMe SSD
  • Integrated 2x 10GbE + 2x 1GbE LAN Ports
  • 1x RJ45 Dedicated IPMI LAN Port
  • Corsair 4000D AIRFLOW Tempered Glass / 4000D Tempered Glass Mid-Tower ATX Chassis



Technical Specifications

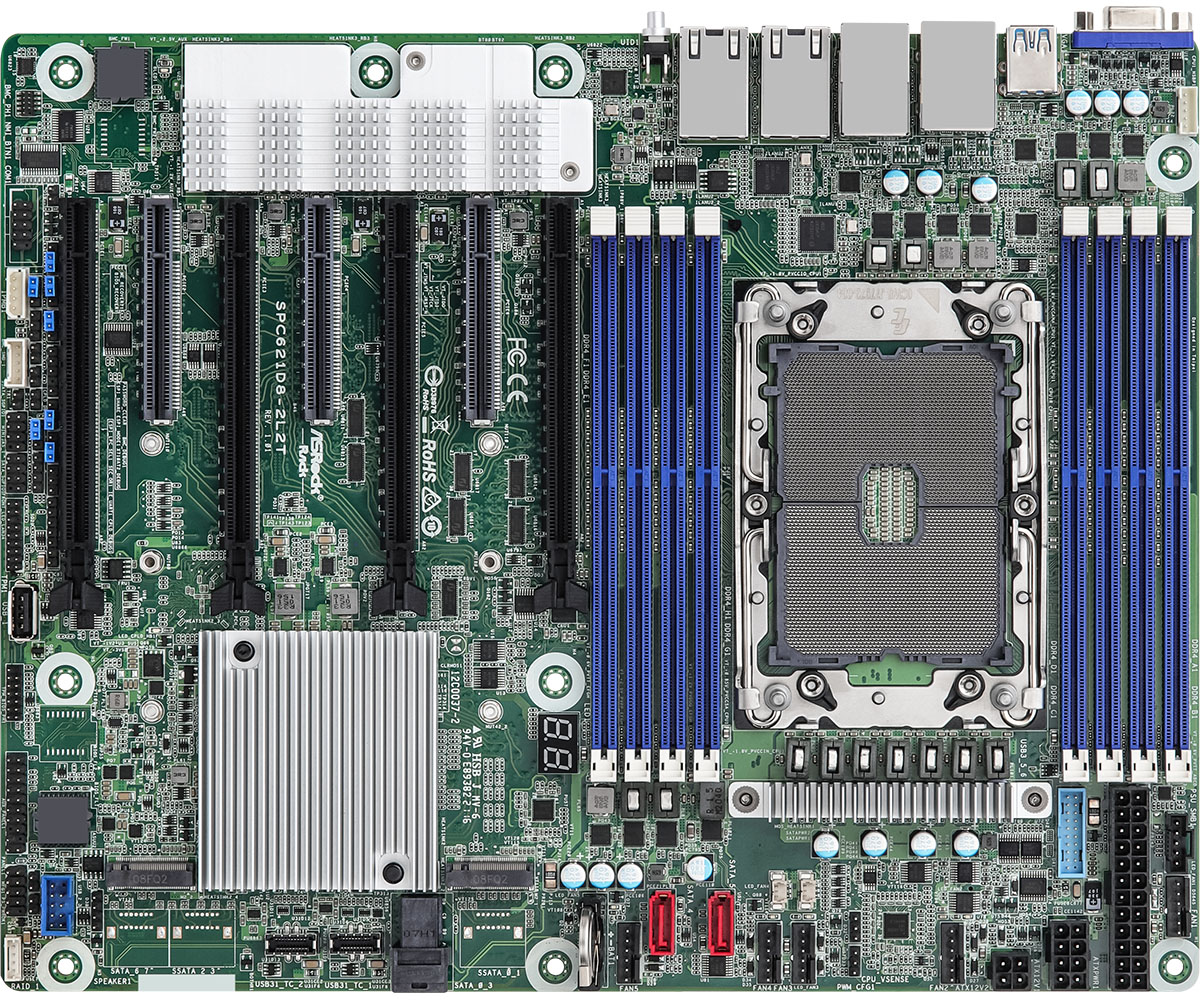

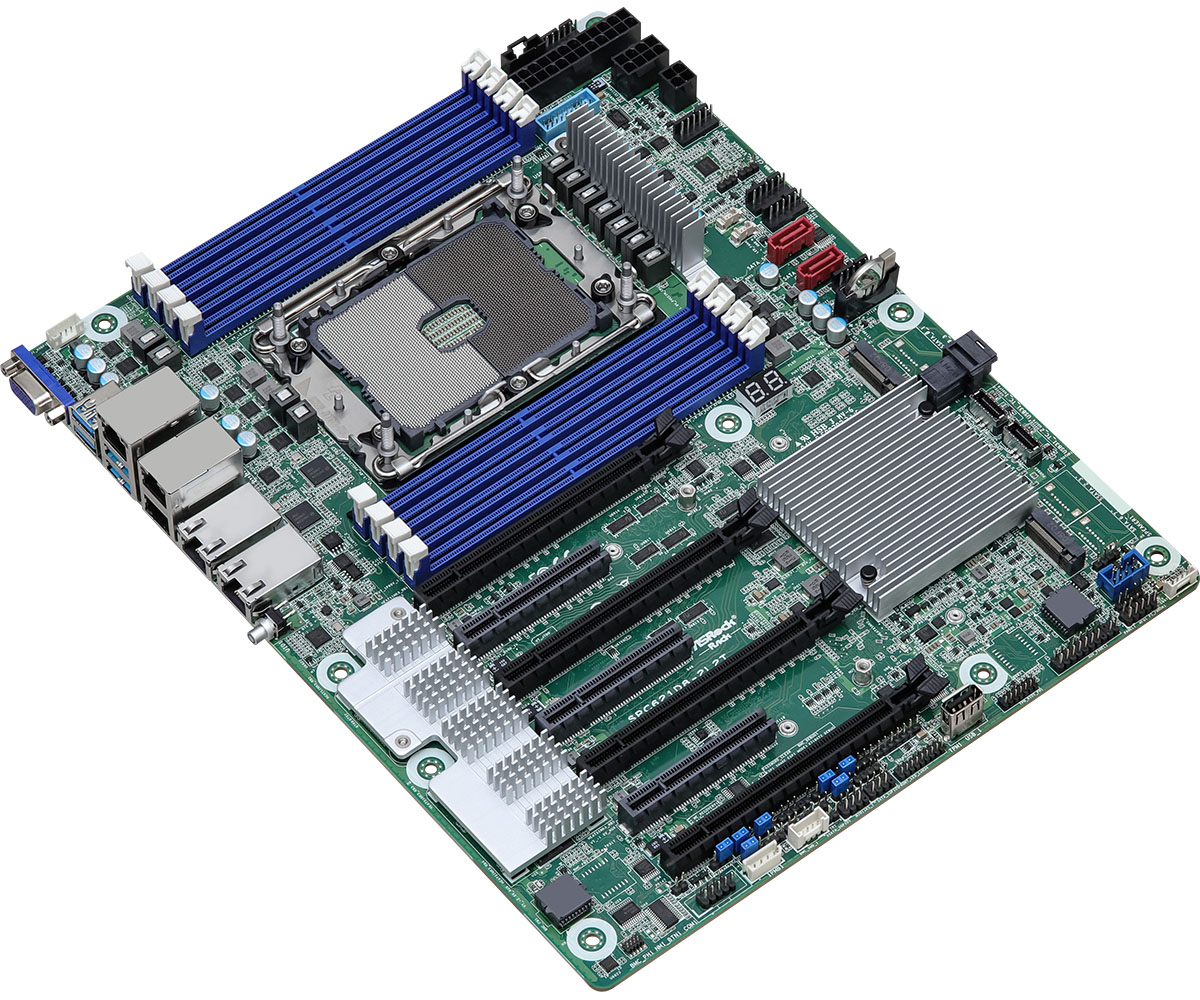

Motherboard • ASRock SPC621D8-2L2T
CPU • Single Socket P+ (LGA 4189)
• Supports 1x 3rd Gen Intel® Xeon® Scalable / Intel® Xeon® W-33xx Processor
Chipset Intel® C621A
Memory • 8x DDR4 DIMM sockets (1 DPC)
• RDIMM: up to 64GB
• RDIMM-3DS: up to 256GB
• LRDIMM: up to 128GB
• LRDIMM-3DS: up to 256GB
Expansion Slots • Slot 7: PCIe 4.0 x16*
• Slot 5: PCIe 4.0 x16*
• Slot 3: PCIe 4.0 x16*
• Slot 1: PCIe 4.0 x16

• Slot 6: PCIe 4.0 x8
• Slot 4: PCIe 4.0 x8
• Slot 2: PCIe 4.0 x8

* Slots 7/5/3 auto-switch to PCIe 4.0 x8 when Slots 6/4/2 are occupied
Storage PCH Built-in Storage

• Intel® C621A (8 SATA 6Gb/s; RAID 0/1/5/10)
• 1 Mini-SAS HD, 2 SATA DOM, 2 M.2
M.2 • 1 M-key (PCIe 3.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor
• 1 M-key (PCIe 3.0 x1 or SATA 6Gb/s), supports 22110/2280/2242 form factor
LAN Controller • 2x RJ45 10GbE RJ45 by Intel® X710-AT2
• 2x RJ45 1GbE RJ45 by Intel® i210
• 1x RJ45 Dedicated IPMI LAN port by RTL8211E
Management BMC Controller
• ASPEED AST2500
IPMI Dedicated LAN
• 1x Realtek RTL8211E for dedicated management
Features
• Watch Dog
• NMI
Graphics Controller
• ASPEED AST2500
VRAM
• DDR4 16MB

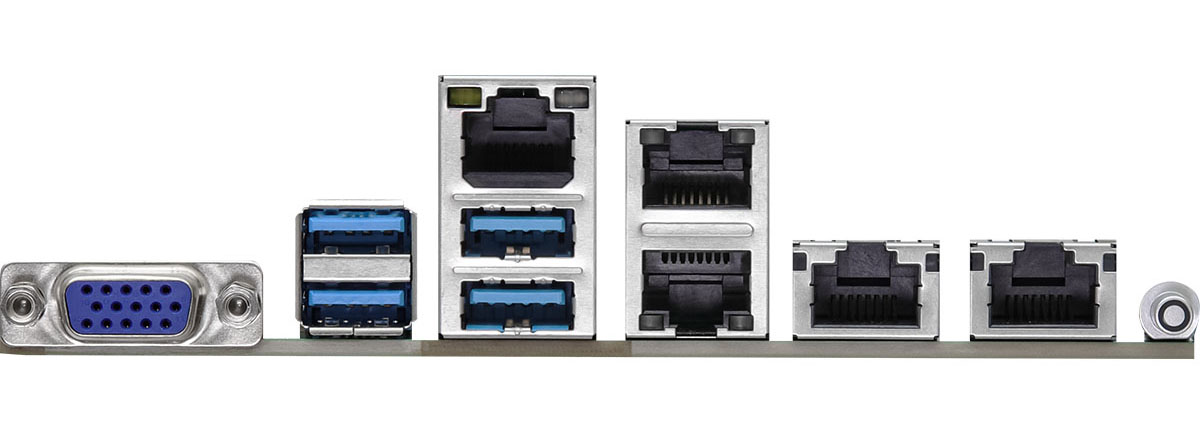

Back I/O Ports • 2x RJ45 10GBase-T Ethernet LAN ports
• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
• 4x USB 3.2 Gen 1 ports (4x Type-A)
• 1x VGA port
Internal Connector/Headers Auxiliary Panel Header
• 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
• 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header
• 1
Video Output
• 1
Speaker Header
• 1
Buzzer
• 1
Fan Header
• 5 (6-pin)
Thermal Sensor Header
• 1
TPM Header
• 1 (17-pin, LPC), 1 (13-pin, SPI)
VROC Header
• 1
SGPIO Header
• 1
SMBus Header
• 1
PMB Header
• 1
IPMB Header
• 1
Clear CMOS
• 1 (contact pad)
USB 3.2 (Gen1) Header
• 1 (19-pin, 2 USB3.2 Gen1)
USB 3.2 (Gen2) Header
• 2 (Type-C, 2 USB3.2 Gen2)
USB 2.0 Header
• 1 (9-pin, 2 USB 2.0)
Type A USB 2.0 Port
• 1 (Type-A, 1 USB 2.0)
NMI Header
• 1
Power Connector
• 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V), 1 (3-pin, SATA power)
ME/SPS Recovery
• 1
NC-SI
• 1
Chassis 4000D AIRFLOW Tempered Glass Mid-Tower
• Form Factor
- Mid Tower
• Case Material
- Steel, Tempered Glass, Plastic
• Case Windowed
- Tempered Glass
• Dimensions
- 453mm L x 230mm W x 466mm H
• Maximum GPU Length
- 360mm
• Maximum PSU Length
- 220mm
• Maximum CPU Cooler Height
- 170mm
• Expansion Slots
- 7 vertical + 2 horizontal
• Drive Bays
- 2 x 3.5"
- 2 x 2.5"
• Front I/O
- (1x) USB 3.1 Type C, (1x) USB 3.0, (1x) Audio in/out
• Radiator Compatibility:
- 120mm, 140mm, 240mm, 280mm, 360mm
• Compatible Corsair Liquid Coolers
- H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i

4000D Tempered Glass Mid-Tower
• Form Factor
- Mid Tower
• Case Material
- Steel, Tempered Glass, Plastic
• Case Windowed
- Tempered Glass
• Dimensions
- 453mm L x 230mm W x 466mm H
• Maximum GPU Length
- 360mm
• Maximum PSU Length
- 220mm
• Maximum CPU Cooler Height
- 170mm
• Expansion Slots
- 7 vertical + 2 horizontal
• Drive Bays
- 2 x 3.5"
- 2 x 2.5"
• Front I/O
- (1x) USB 3.1 Type C, (1x) USB 3.0, (1x) Audio in/out
• Radiator Compatibility:
- 120mm, 140mm, 240mm, 280mm, 360mm
• Compatible Corsair Liquid Coolers
- H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i

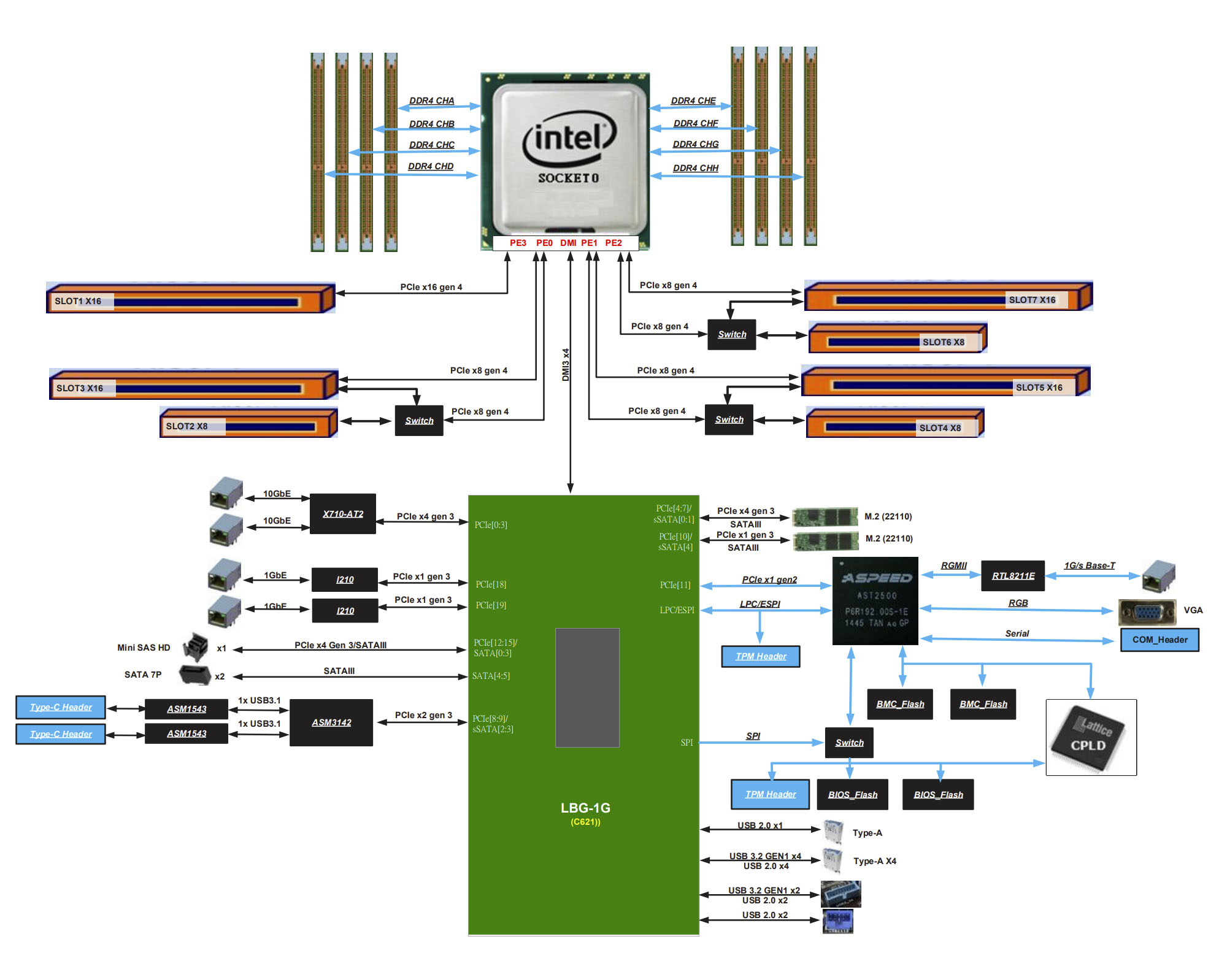

Block Diagram

Images

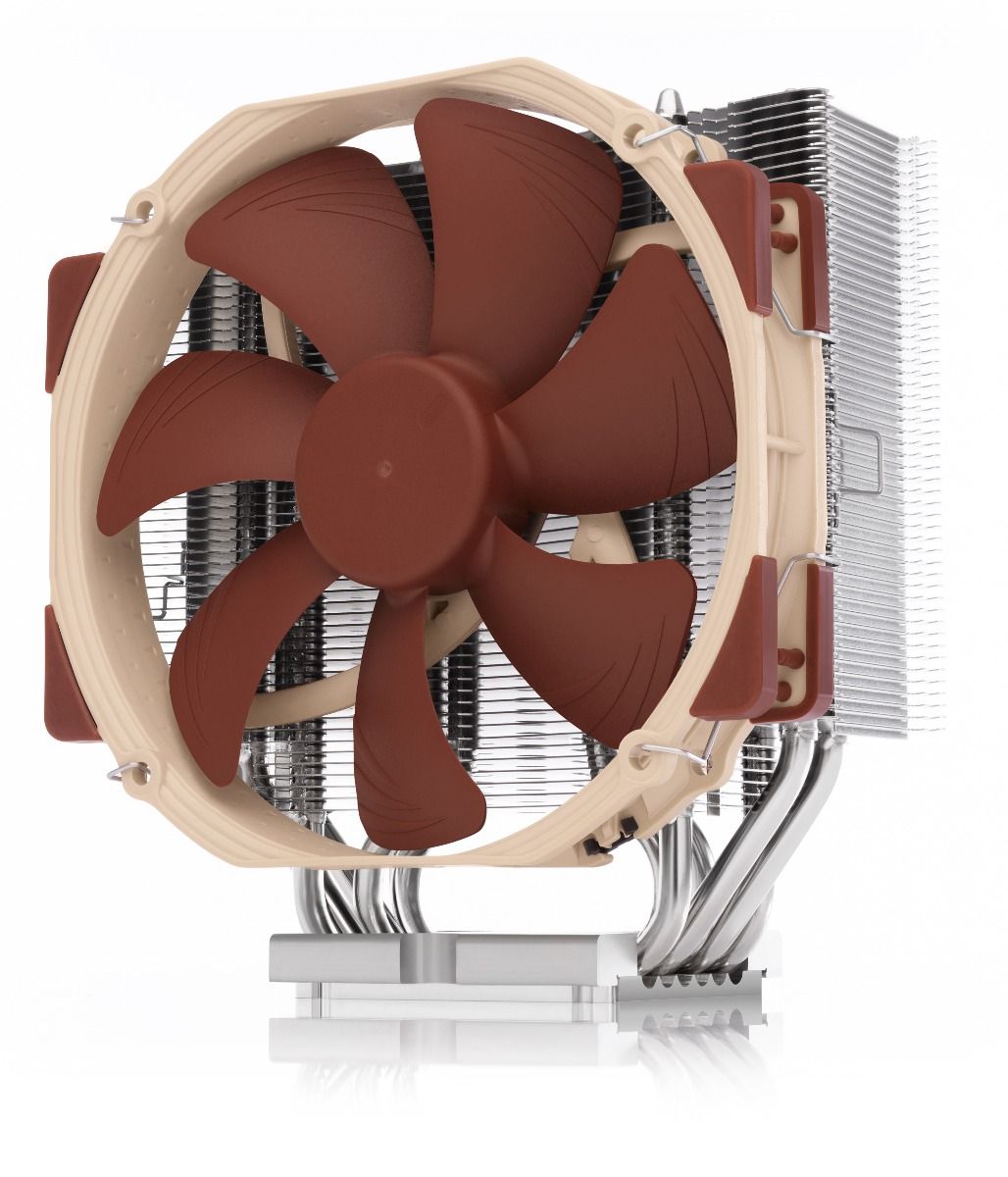

Noctua NH-U14S DX-4189 CPU Cooler

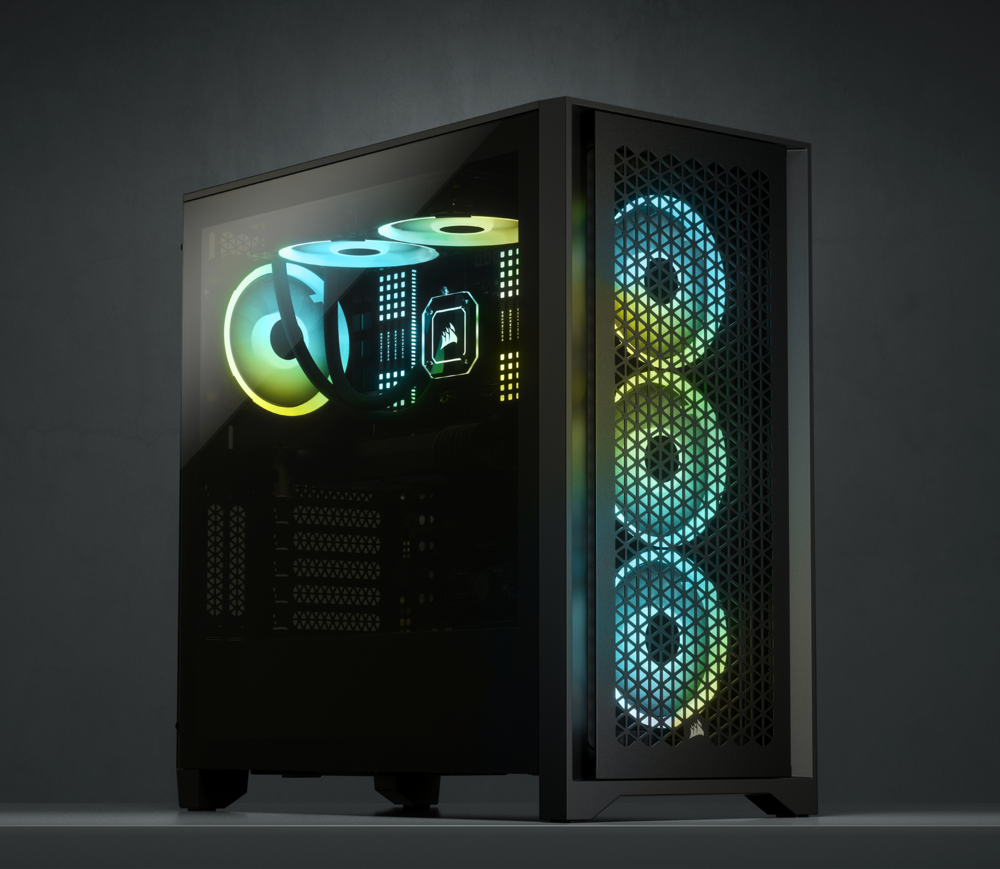

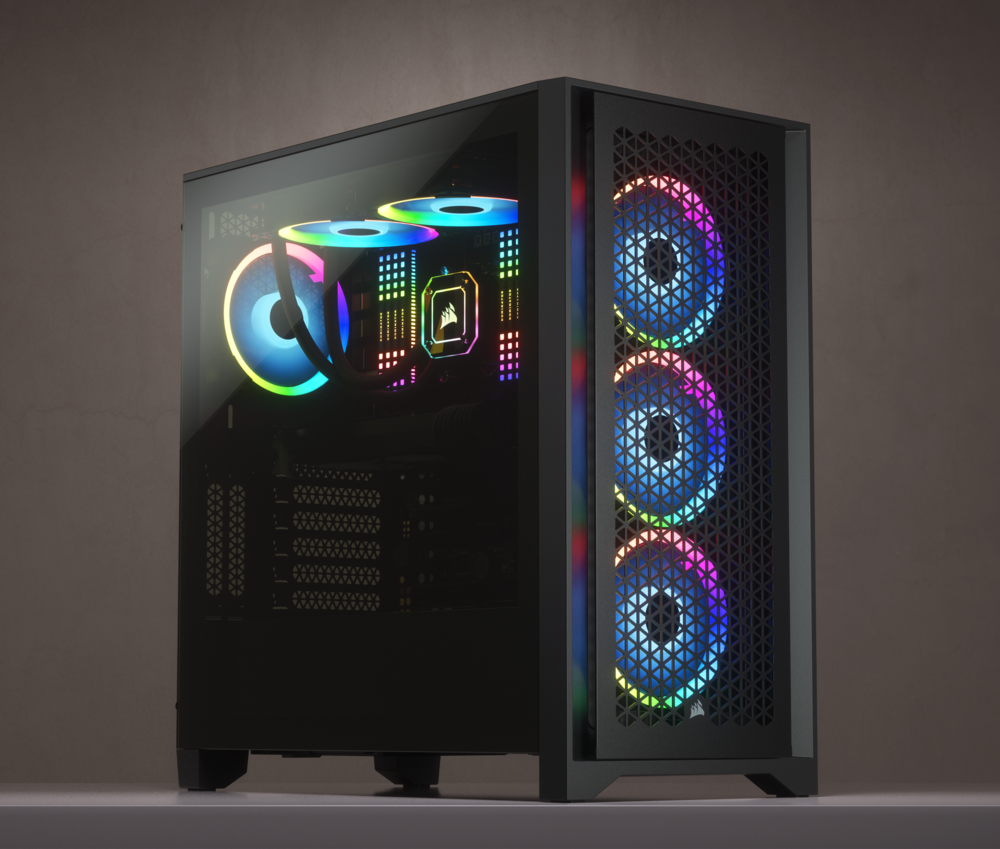

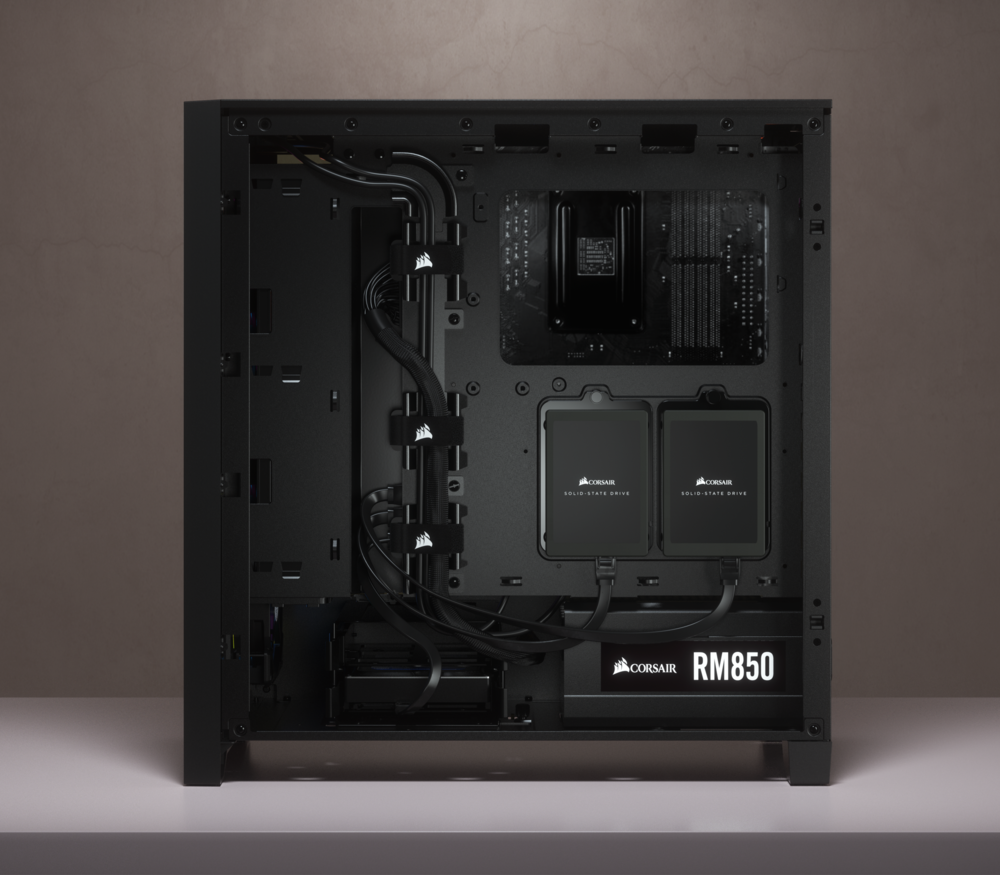

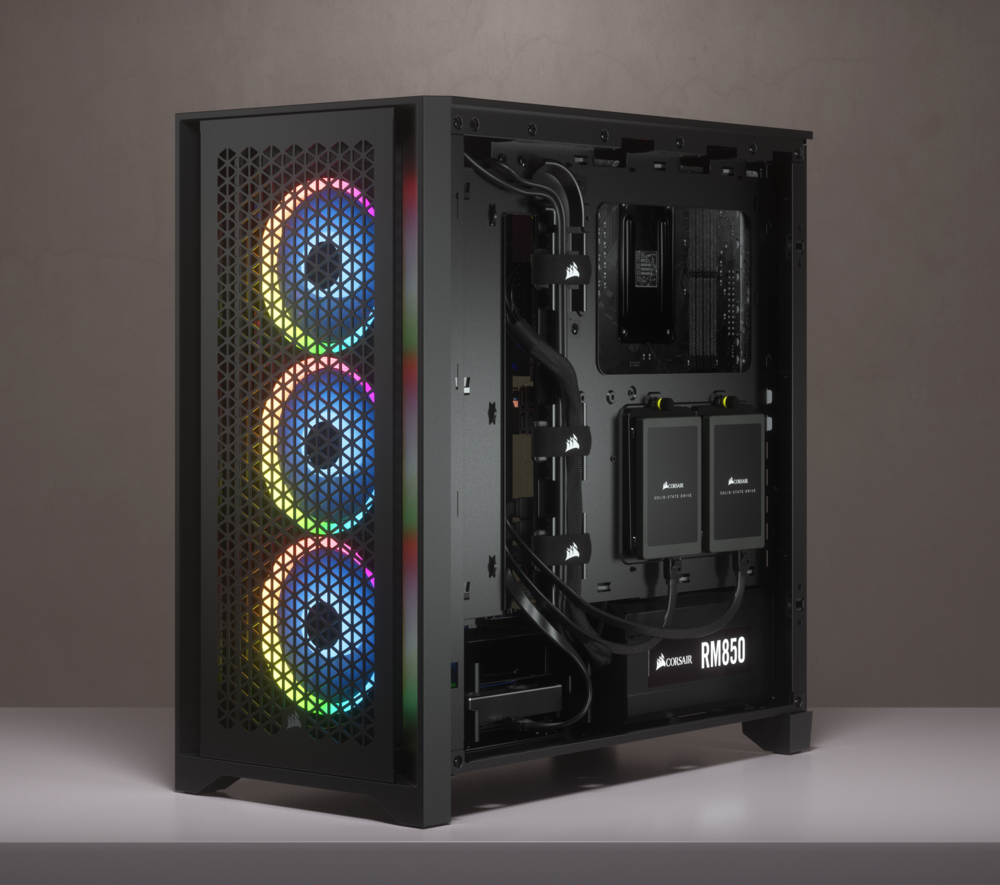

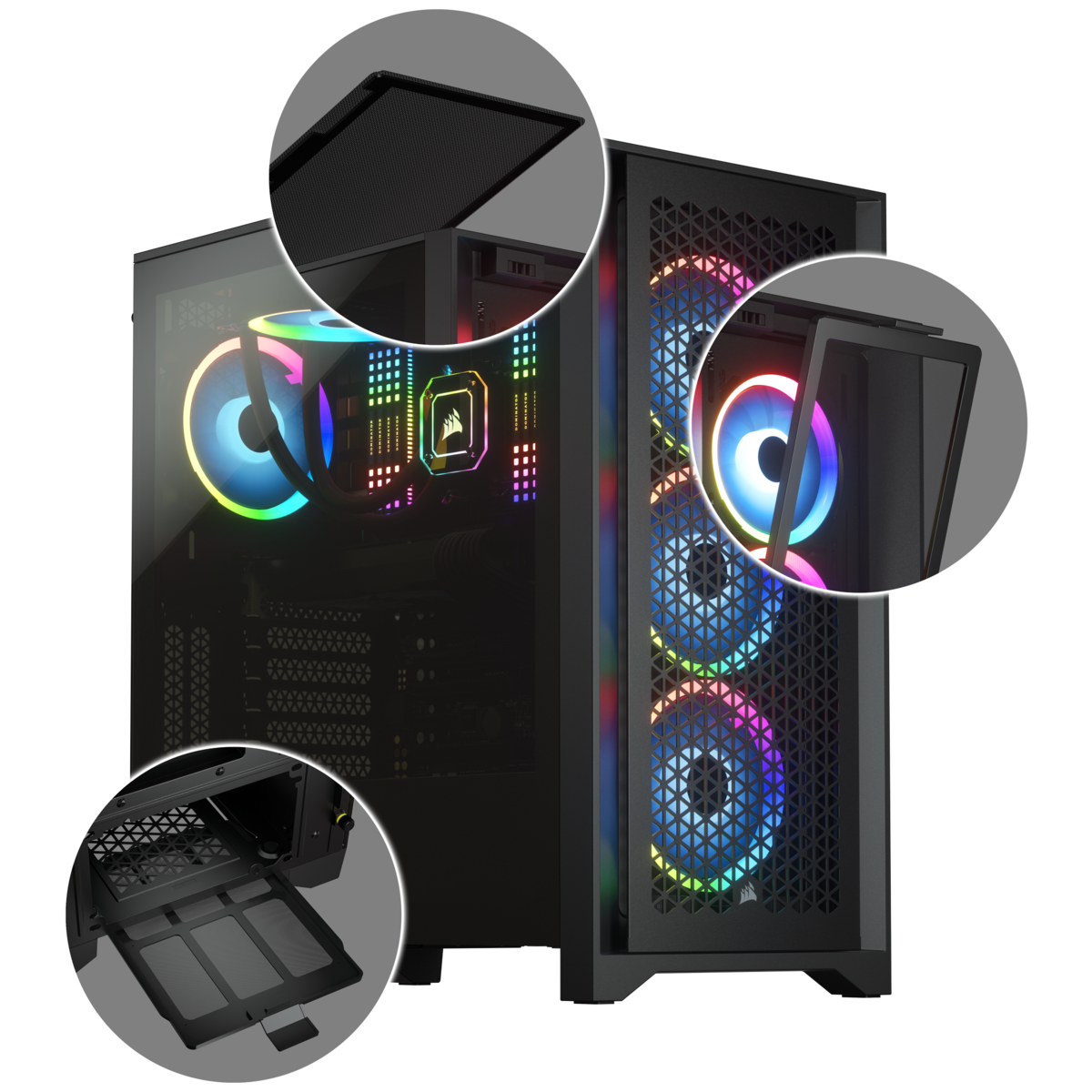

Corsair 4000D AIRFLOW Tempered Glass Mid-Tower ATX

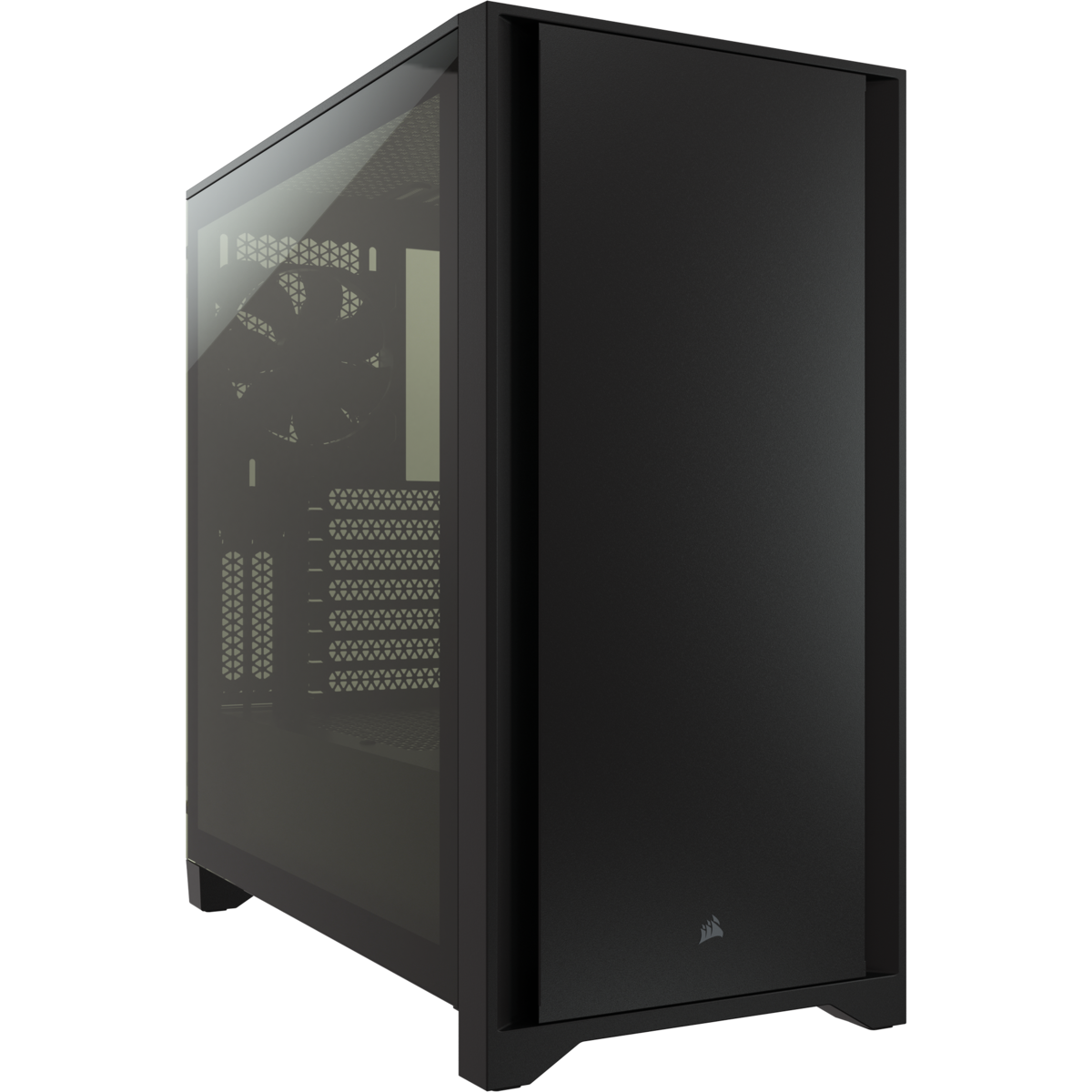

Corsair 4000D Tempered Glass Mid-Tower ATX
