Colfax ProEdge™ SX4900 4U Rackmount Workstation



  • 1x 3rd Gen Intel® Xeon® Scalable Processor
  • Up to 4x NVIDIA® RTX™ or NVIDIA Ampere Architecture GPUs
  • 16x DIMMs
  • 8x Hot-Swap 3.5" SATA Drive Bays
  • 4x M.2 SSDs

Features

  • 1x 3rd Gen Intel® Xeon® Scalable Processor
  • Up to 4x NVIDIA® RTX™ or NVIDIA Ampere Architecture GPUs
  • Intel C621A Chipset
  • 16x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots
    - 4 x PCI-E 4.0 x16
    - 3 x PCI-E 4.0 x8
  • Storage
    - 8x Hot-Swap 3.5" SATA Drive Bays
    - 4x M.2 PCIe 4.0 x4 SSDs
  • Integrated 1x 10GBase-T and 1x 1GbE LAN Ports
  • 1x RJ45 Dedicated IPMI LAN Port
  • 2200W High Efficiency Redundant Power Supply (80PLUS Titanium Certified)



Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Form Factor & Dimensions • 4U Rackmountable / Tower
• Optional Rackmount Kit

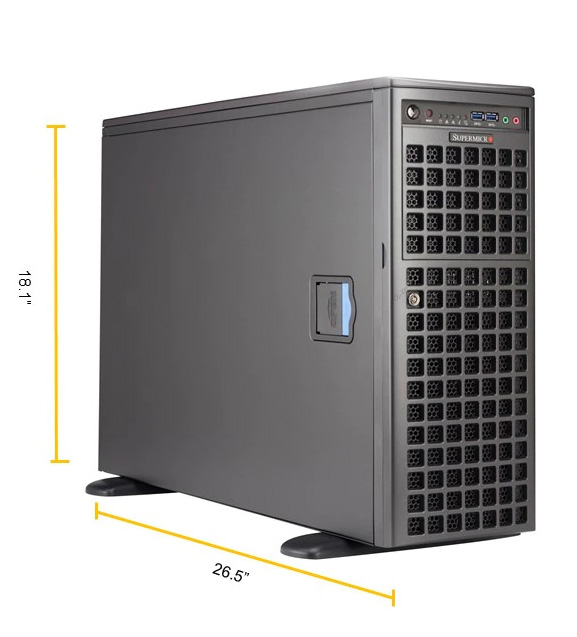

• Height 18.1" (460mm) x Width 7.0" (178mm) x Depth 26.5" (673mm)
CPU • Single Socket P+ (LGA-4189)
• Supports 1x 3rd Gen Intel® Xeon® Scalable / Intel® Xeon® W-33xx Processor
• TDP up to 270W
Memory • 16x DDR4 DIMM slots
• Supports up to 4TB - 16x 256 GB DRAM
• Up to 3200MHz ECC DDR4 RDIMM / LRDIMM
Chipset • Intel® C621A
Expansion Slots • Slot 1: PCI-E 4.0 x16
• Slot 2: PCI-E 4.0 x8 (in x16)
• Slot 3: PCI-E 4.0 x16
• Slot 4: PCI-E 4.0 x8 (in x16)
• Slot 5: PCI-E 4.0 x16
• Slot 6: PCI-E 4.0 x8 (in x16)
• Slot 7: PCI-E 4.0 x16
On-board Devices Network Controllers
• Single LAN with Intel® Ethernet Controller I210-AT
• Single LAN with Marvell AQC113 10G Ethernet Controller
• Single LAN with Realtek RTL8211F PHY (dedicated IPMI)
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
I/O SATA
• 8 SATA3 (6Gbps) ports
LAN
• 1x RJ45 Gigabit Ethernet LAN port
• 1x RJ45 10GBase-T Ethernet LAN port
• 1x RJ45 Dedicated IPMI LAN port
USB
• 6x USB 3.2 Gen1 ports (2 headers, 4 rear)
• 2x USB 3.2 Gen2 ports (1 rear Type A + 1 Rear Type C)
• 4x USB 2.0 ports (2 headers, 2 rear)
VGA
• 1x VGA port
Drive Bays / Storage • 8x 3.5" hot-swap SATA3 drive bays
• 3x 5.25" peripheral drive bays
• 4x M.2 PCI-E 4.0 x4

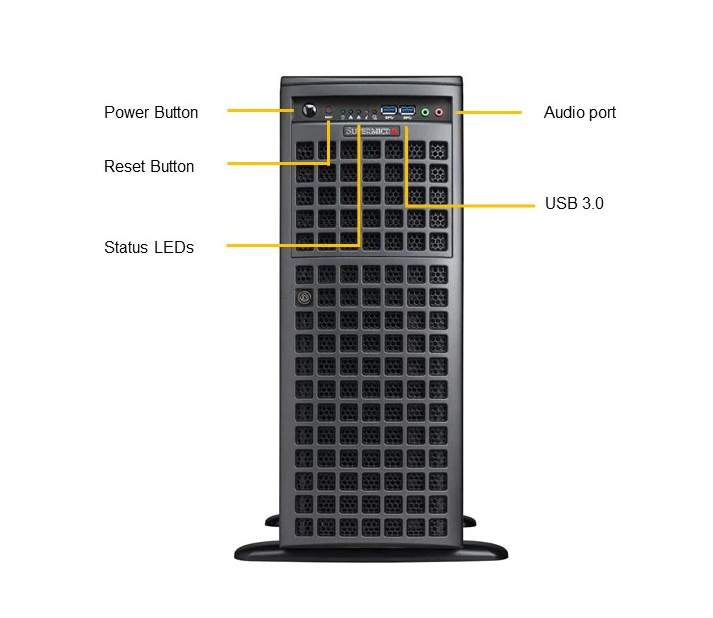

Front Panel Buttons
• Power On/Off button
• System reset button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LED
• System Overheat / Fan Fail LED
Ports
• 2x USB 3.0 Ports
Power Supply • 2200W high-efficiency power supply w/ PMBus
• AC Input
- 1200W: 100-127Vdc / 50-60Hz
- 1800W: 200-220Vdc / 50-60Hz
- 1980W: 220-230Vdc / 50-60Hz
- 2090W: 230-240Vdc / 50-60Hz
- 2200W: 230-240Vdc / 50-60Hz
• +12V
- Max: 100A / Min: 0A
- Max: 150A / Min: 0A
- Max: 165A / Min: 0A
- Max: 174A / Min: 0A
- Max: 183.3A / Min: 0A
• 80PLUS Titanium Certified

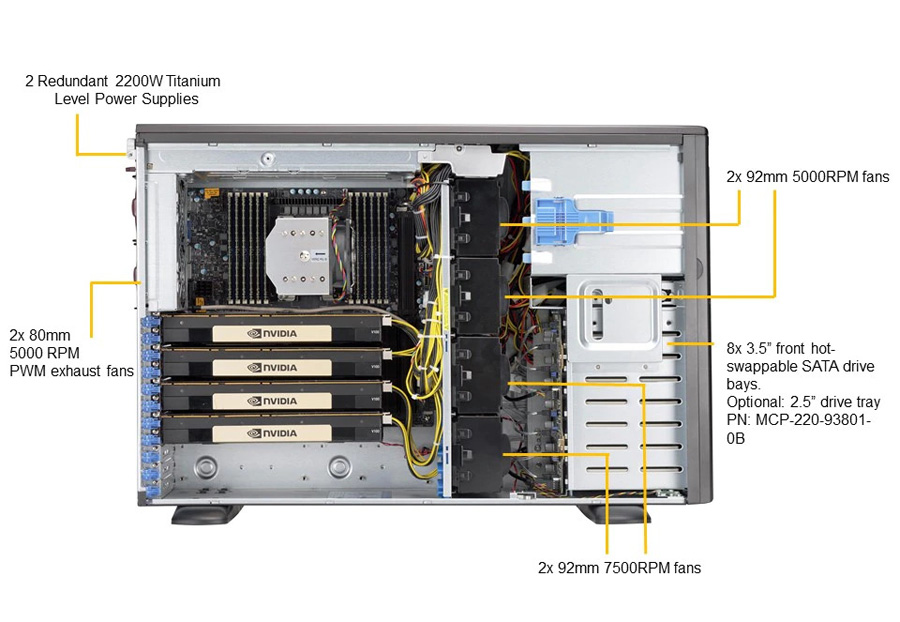

Cooling • 4x 92mm hot-swap fans
• 2x 80mm rear hot-swap exhaust PWM fans
BIOS • 256Mb SPI Flash with AMI BIOS

Block Diagram

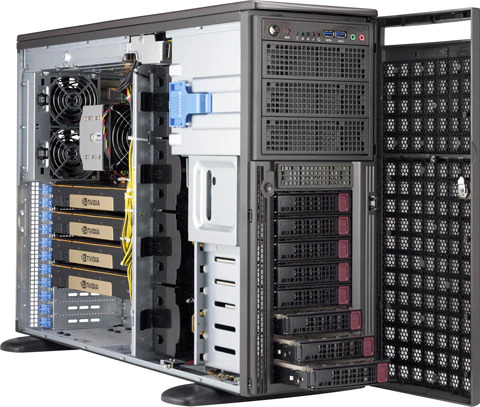

Images
