Colfax ProEdge™ WX2400N Workstation



  • Intel® Xeon® W-2500/2400 Processor
  • 8x DIMMs Supporting DDR5 Memory
  • 2x SATA HDDs/SSDs
  • 2x 2.5" NVMe SSDs
  • 1x M.2 NVMe SSD

Features

  • Asus Pro WS W790E-ACE Board
  • Fractal North Chassis (Chalk White / Charcoal Black)
  • Intel® Xeon® W-2500/2400 Processor
  • ENERMAX LIQTECH TR4 II Series 240mm Liquid CPU Cooler (Learn More)
  • Intel® W790 Chipset
  • 8x DIMMs Supports DDR5 ECC RDIMMM
  • 5 PCI-E 5.0 x16 Slots
  • 2x SATA HDDs/SSDs
  • 2x 2.5" NVMe SSDs
  • 1x M.2 NVMe SSD
  • 1x Marvell® AQtion 10Gb Ethernet & 1x Intel® 2.5Gb Ethernet
  • USB 3.2 Gen 2x2 Type-C®
  • Server-grade IPMI Remote Management


Optional (Not listed in the Configurator but available on request)


Rocket 7608A – PCIe Gen5 x16 to 8-M.2x4 NVMe RAID AIC

  • Bus Interface: PCIe 5.0 x16
  • Port Count: 8x NVMe Ports
  • Connector Type: M.2
  • Device & Form factor: 2242, 2260, 2280
  • Cooling: Full-Length Aluminum Heatsink with cooling fan
  • Ext. Power Connector: Yes (uses PCIe Standard 2x3 Power Connector)
  • AIC Form factor: Full-Height, Single-Width
  • Operating System Support: Windows & Linux
  • FRU: Yes (stores VPD data)
  • Hardware Secure Boot: Yes
  • OOB Managament: No
  • Synthetic Hierarchy: Yes
  • RAID Support: Single, RAID 0, 1, 10
  • HighPoint Advanced Feature Suite: Yes

Download Datasheet



Technical Specifications

Motherboard • Asus Pro WS W790E-ACE
CPU • Socket LGA4677
• Intel® Xeon® W-3500/3400 and W-2500/2400 Series Processors
Chipset • Intel® W790
Memory • 8x DDR5 DIMM sockets (Max. 2048GB)
• 4800MHz ECC Registered Memory
• 8-channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP)
Expansion Slots Intel® Xeon® W-3400 and W-2400 Series Processors
• 5x PCIe 5.0 slots (x16, x16, x16, x0/x8, x16/x8)
Integrated LAN • 1x Marvell® AQtion 10Gb Ethernet
• 1x Intel® 2.5Gb Ethernet
Storage Supports 2x M.2 slots, 4x SATA 6Gb/s ports and 3x SlimSAS ports

Intel® W790 Chipset
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• SlimSAS_1 slot supports PCIe 3.0 x4 mode NVMe device
• SlimSAS_2 slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable.
• SlimSAS_3 slot supports PCIe 4.0 x4 mode NVMe device
• 4x SATA 6Gb/s port(s)
Audio • Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192 kHz playback
- Rear optical S/PDIF out port
- Premium audio capacitors

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio
USB Ports Rear USB: Total 13 ports
• 1x USB 3.2 Gen 2x2 port (1x USB Type-C®)
• 4x USB 3.2 Gen 2 ports (4x Type-A)
• 8x USB 2.0 ports (8x Type-A)
Front USB: Total 7 ports
• 1x USB 3.2 Gen 2 connector (suppports USB Type-C®)
• 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2x USB 2.0 headers support additional 4 USB 2.0 ports
Back I/O Ports • 1x USB 3.2 Gen 2x2 port (1x USB Type-C®)
• 4x USB 3.2 Gen 2 ports (4x Type-A)
• 8x USB 2.0 ports (8x Type-A)
• 1x Marvell® AQtion 10Gb Ethernet port
• 1x Intel® 2.5Gb Ethernet port
• 1x Optical S/PDIF out
• 5x Audio jacks
• 1x Clear CMOS button
• 1x USB BIOS FlashBack™ button
Internal I/O Ports Fan and Cooling related
• 1x 4-pin CPU Fan header
• 1x 4-pin CPU OPT Fan header
• 5x 4-pin Chassis Fan headers
• 1x W_PUMP+ header
Power related
• 2x 24-pin Main Power connectors
• 4x 8-pin +12V Power connectors
• 1x 8-pin PCIe Power connector
Storage related
• 2x M.2 slots (Key M)
• 3x SlimSAS connectors
• 4x SATA 6Gb/s ports
USB
• 1x USB 3.2 Gen 2 connector (supports Type-C)
• 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
• 1x BMC header
• 1x COM Port header
• 1x FlexKey button
• 1x Front Panel Audio header (AAFP)
• 1x LN2 Mode jumper
• 1x ReTry button
• 1x Start button
• 1x SPI TPM header (14-1pin)
• 1x VROC Key header
• 1x 20-3 pin System Panel header with Chassis intrude function
• 1x Thermal Sensor header

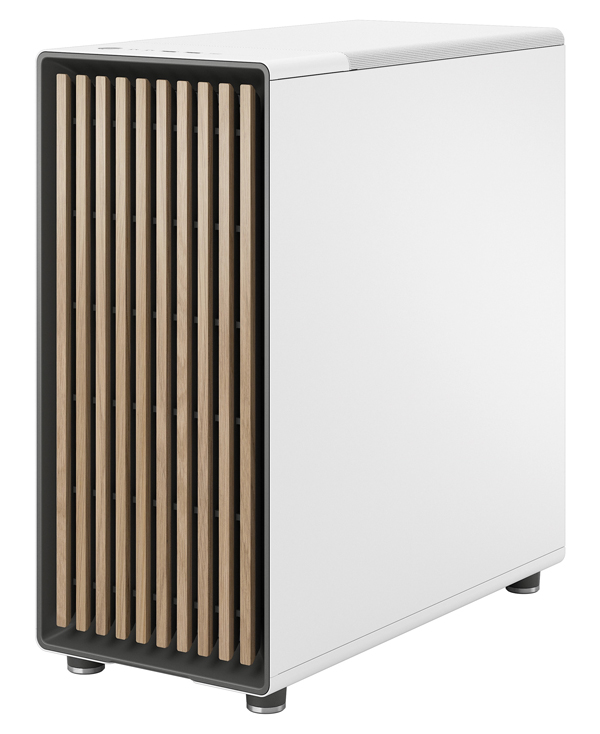

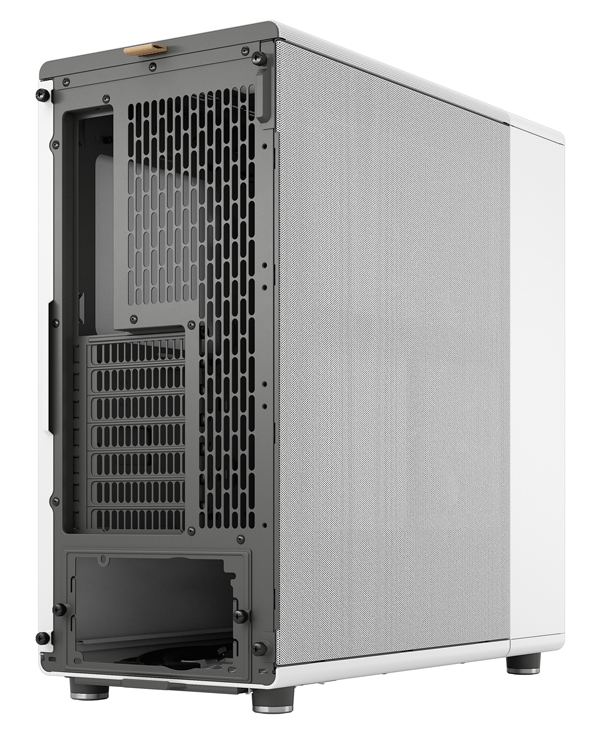

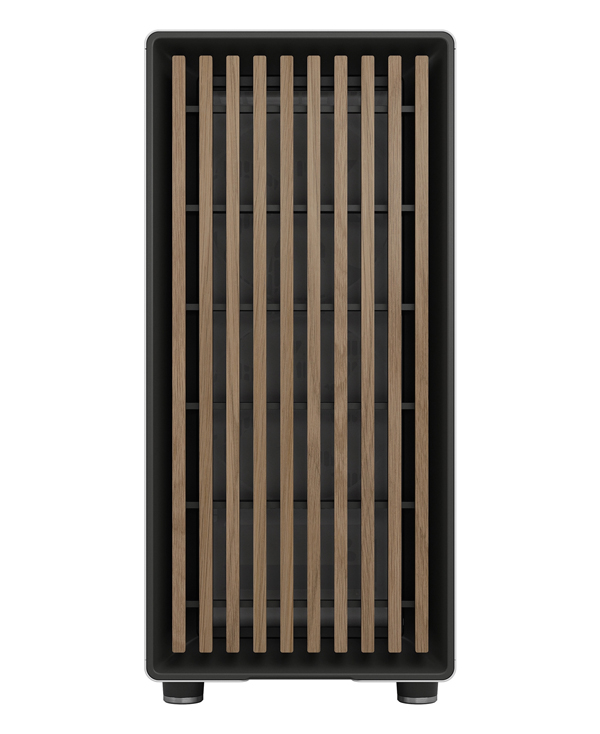

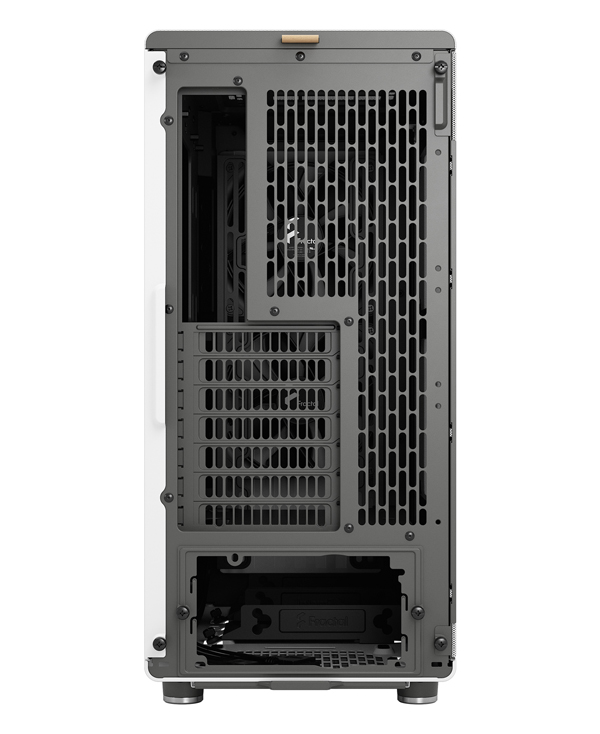

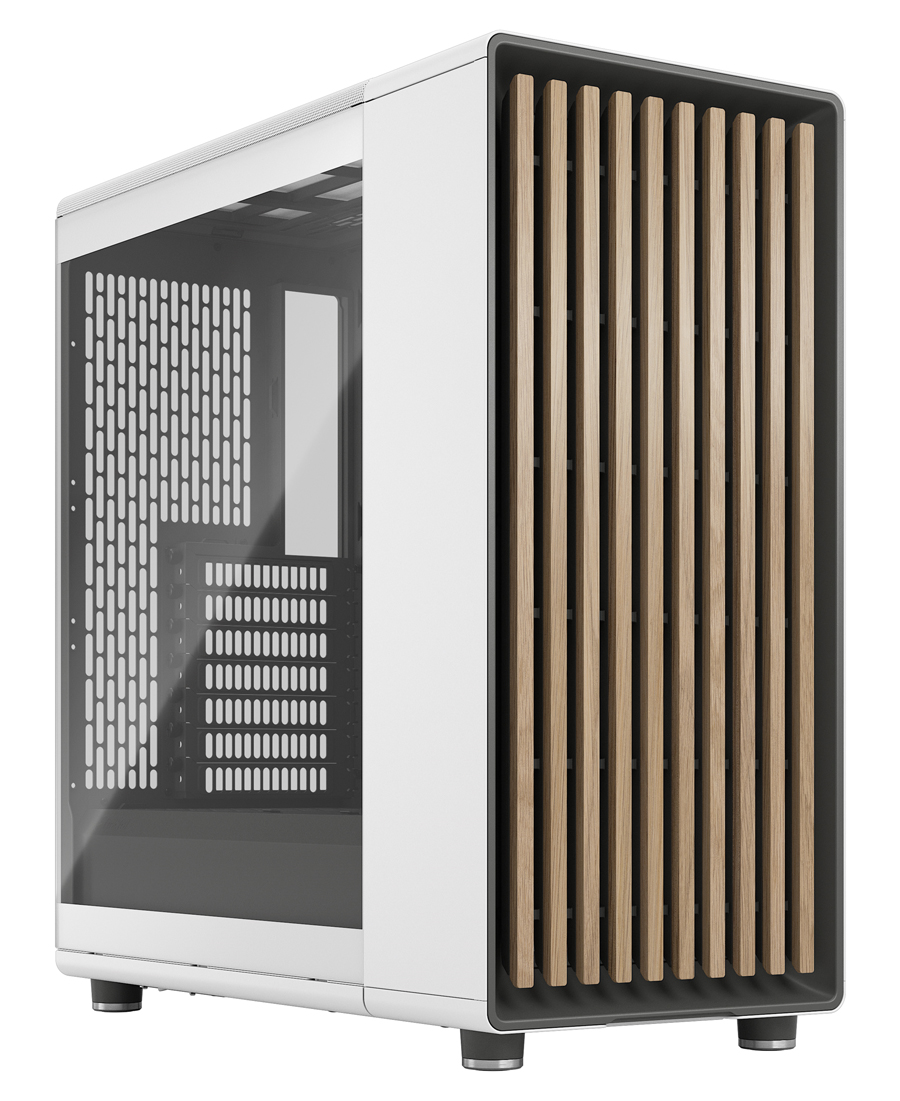

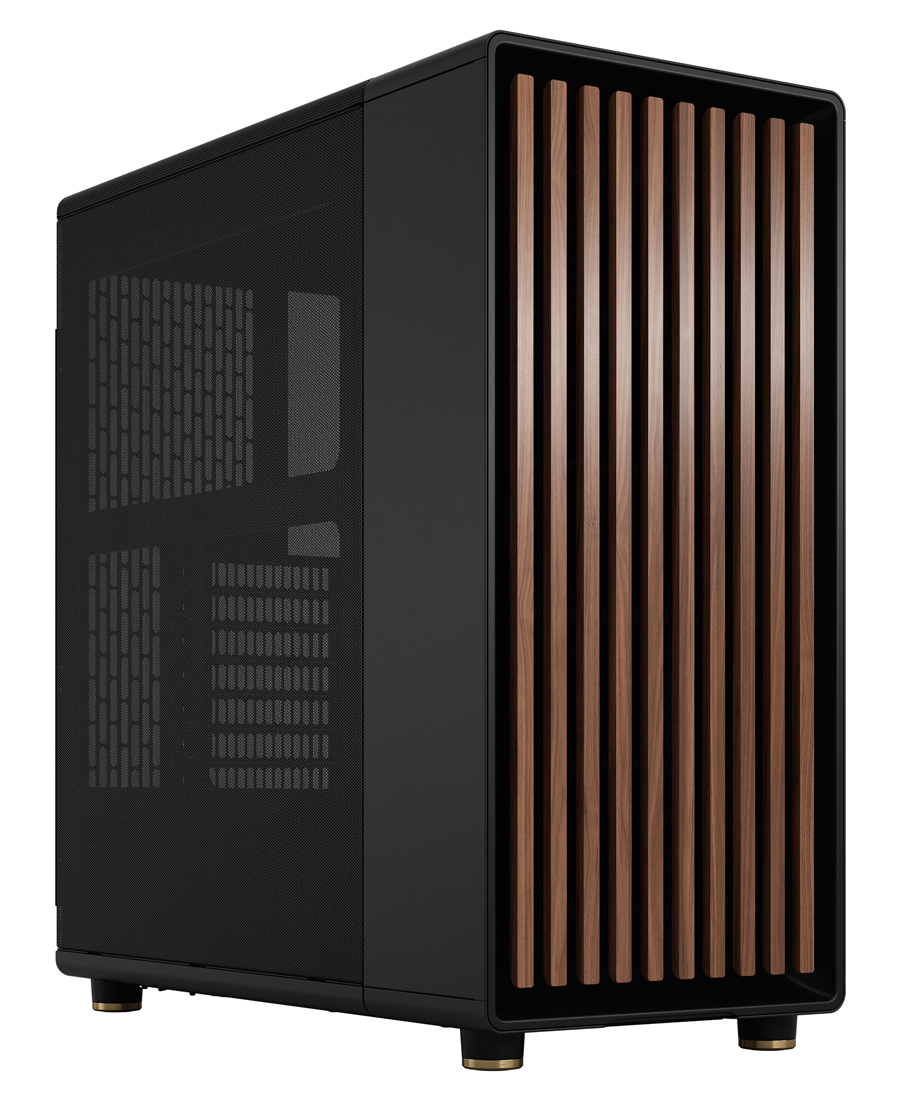

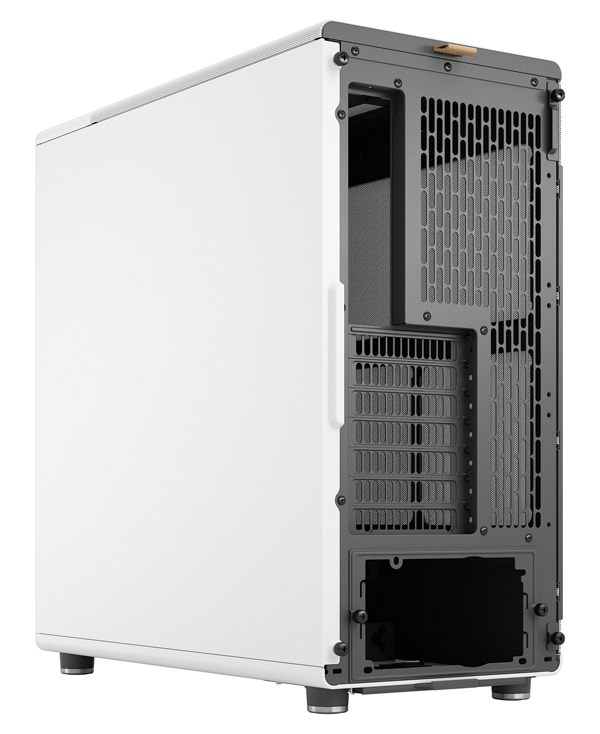

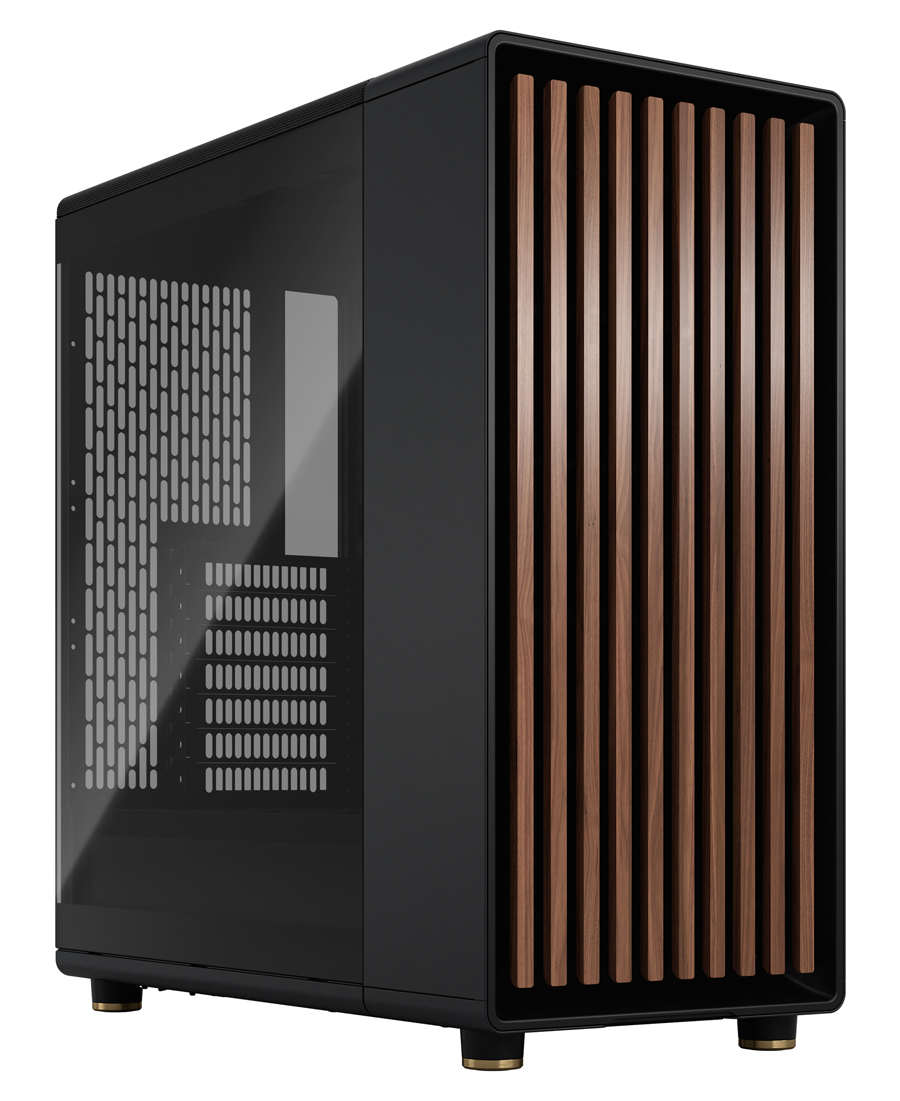

Chassis Chalk White / Chalk White Tempered Glass Clear / Charcoal Black / Charcoal Black Tempered Glass Dark

Combined 3.5/2.5" drive mounts
• 3 (2 included)
Dedicated 3.5" drive mounts
• 0

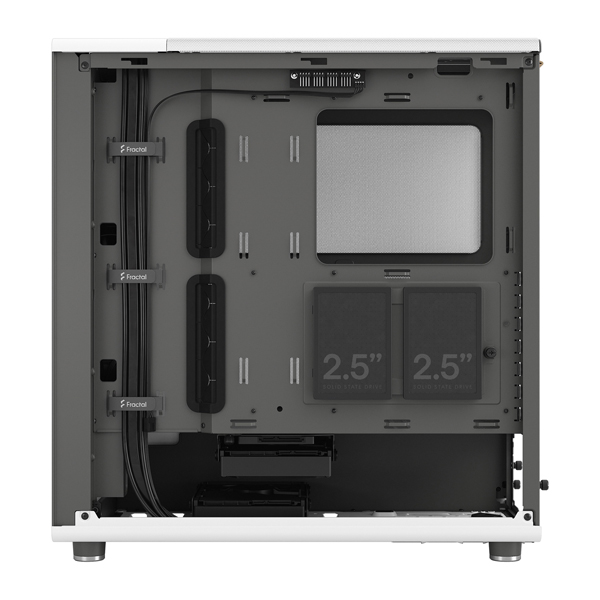

Dedicated 2.5" drive mounts
• 2
5.25" drive mounts
• 0
Expansion slots
• 7
Front interface
• 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio & Mic
Total fan mounts
• 8x 120 mm or 6x 140 mm (Mesh) / 6x 120 mm or 4x 140 mm (TG)
Front fan
• 3x 120, 2x 140 mm (2 x Aspect 140 mm PWM Included)
Top fan
• 2x 120/140 mm
Rear fan
• 1x 120 mm

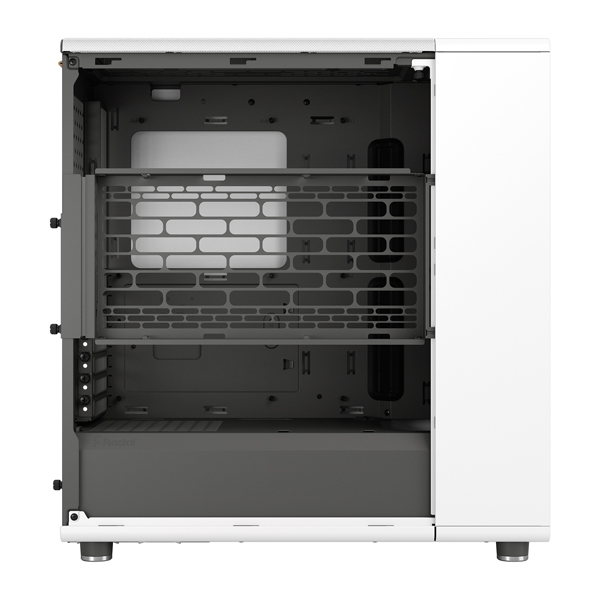

Side bracket fans
• 2x 120/140 mm (Mesh) / N/A (TG)
Dust filters
• Front, PSU
Fixed cable straps
• Yes
Cable routing grommets
• Yes
Captive thumbscrews
• HDD brackets, SSD bracket, Side Panels, Fan Bracket, PSU Bracket
Left side panel
• Mesh or tempered glass
Right side panel
• Steel

Compatibility

Motherboard compatibility
• ATX / mATX / Mini-ITX
Power supply type
• ATX
PSU max length
• 1 HDD Tray: 255 mm max, 2 HDD Tray: 155 mm max
GPU max length
• 355 mm with front fan mounted / 300 mm with 360 mm front mounted radiator
CPU cooler max height
• 145 mm with Fan Bracket / 170 mm w.o (Mesh) / 170 mm (TG)
Front radiator
• Up to 360 mm
Top radiator
• Up to 240 mm
Rear radiator
• 1x 120 mm (If using a rear radiator the mesh version fan bracket can only be slotted into the bottom position)
Bottom radiator
• N/A
Cable routing space
• 30 mm

Dimensions

Case dimensions (LxWxH)
• 447 x 215 x 469 mm
Case dimensions w/o feet/protrusions/screws
• 433.5 x 215 x 450 mm
Net weight
• 7.6 kg (Mesh) / 7.7 kg (TG)

Images














$1,832.72


  Qty.Colfax ProEdge™ WX2400N Workstation, Cost As Configured $1,832.72
Motherboard 1
Primary CPU 1
Liquid Pump 1
Chassis 1
Power Supply 1
Memory Socket 1 of 8    1

Set next    items (  ) like this
Memory Socket 2 of 8    1
Memory Socket 3 of 8    1
Memory Socket 4 of 8    1
Memory Socket 5 of 8    1
Memory Socket 6 of 8    1
Memory Socket 7 of 8    1
Memory Socket 8 of 8    1
M.2 Drive 1
U.2 Drive 1    1

Set next    items (  ) like this
U.2 Drive 2    1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Video Card 1
TPM 1
Asus ProArt LCD 1
Operating System SW 1
   Colfax ProEdge™ WX2400N Workstation, Cost As Configured $1,832.72
