Colfax ProEdge™ SX7200 Workstation



  • 2x Intel® Xeon® Scalable Processors
  • 16x DIMMs
  • 8x 3.5" Hot-Swap Drive Bays
  • 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots

Features

  • 2x Intel® Xeon® Scalable Processors
  • Intel C621 Chipset
  • 16x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots
    - 4 x PCI-E 3.0 x16
    - 2 x PCI-E 3.0 x8
  • 8x 3.5" Hot-Swap Drive Bays (Optional 2x NVMe SSDs)
  • 1x M.2 SSD
  • Integrated 2x 1 Gigabit Ethernet Ports
  • 1200W High-Efficiency Power Supply, 80PLUS Platinum



Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Dual Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (TDP 70-205W)
Memory • 16x DIMM Sockets
• Supports up to 2TB 3DS ECC LRDIMM, 1024GB ECC RDIMM
• Memory Type 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
Chipset • Intel® C621
Expansion Slots PCI-Express
• 4x PCI-E 3.0 x16 slots
• 2x PCI-E 3.0 x8 slots
M.2
• M.2 Interface: PCIe 3.0 x4
• Form Factor: M-Key 2260, 2280, 22110
On-board Devices SATA
• SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
• Dual LAN with GbE from C621
Audio
• RealTek ALC888 7.1 High Definition Audio with S/PDIF header
IPMI
• ASPEED AST2500
I/O SATA
• 10x SATA3 (6Gbps) ports
NVMe
• 2x NVMe support
LAN
• 2x RJ45 Gigabit Ethernet LAN ports
USB
• 6x USB 3.0 ports (4 rear + 2 front)
• 2 USB 3.1 ports (rear)
Audio
• 7.1 HD Audio with optical S/PDIF
Video
• 1x VGA port
Serial Port / Header
• 1x COM port (header)
DOM
• 2x DOM (Disk on Module) ports
TPM
• 1x TPM 2.0 header
Drive Bays • 8x 3.5" hot-swap drive bays
• 3x 5.25" peripheral drive bays
Front Panel Buttons
• Power On/Off button
• System reset button
LEDs
• Power status LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
Ports
• 2x front USB 3.0 Ports
Power Supply • 1200W high-efficiency power supply w/ PMBus
• AC Input
- 1000W: 100-114.9 V, 50-60 Hz, 12 Amp
- 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
• DC Output
- +3.3V / +5V / +12V / -12V / +5VSB
• 1000W max
- 20A / 20A / 83A / 0.3A / 3A
• 1200W max
- 20A / 20A / 99A / 0.3A / 3A
• 80PLUS Platinum Certified

Note: Max continuous combined load on +3.3V and +5V output shall not exceed 120W.
Cooling • 2x Super quiet PWM chassis fans (support up to 4 fans)
• 1x Super quiet rear fan with optimal fan speed control
BIOS • UEFI 128M
Dimensions • Height 17.8" (452mm) x Width 7.0" (178mm) x Depth 25.5" (648mm)

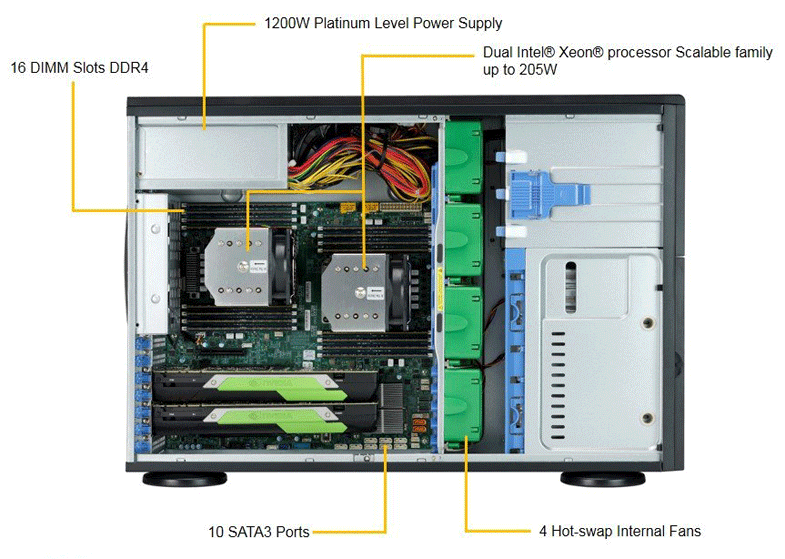

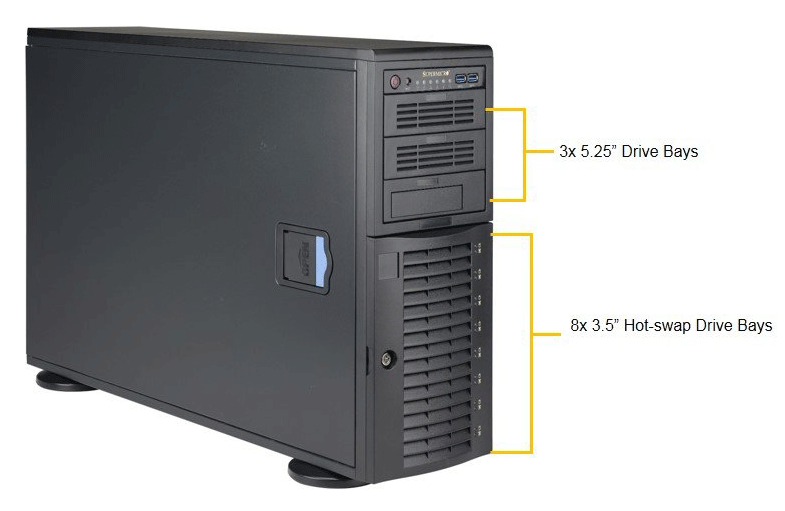

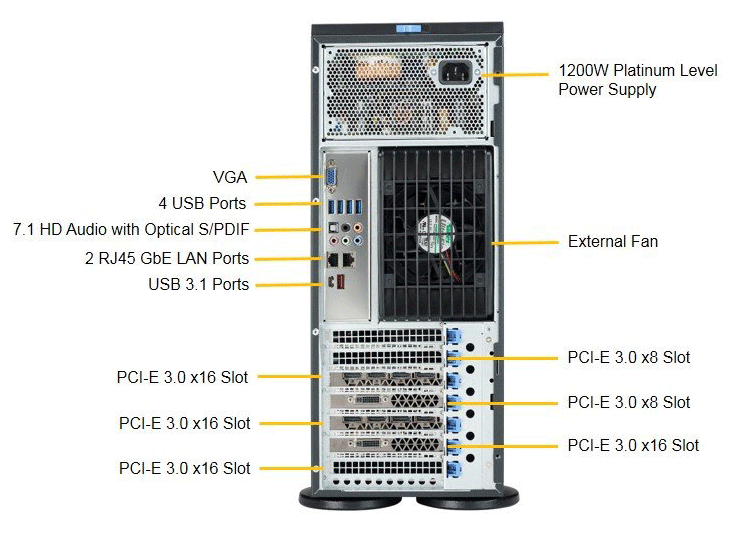

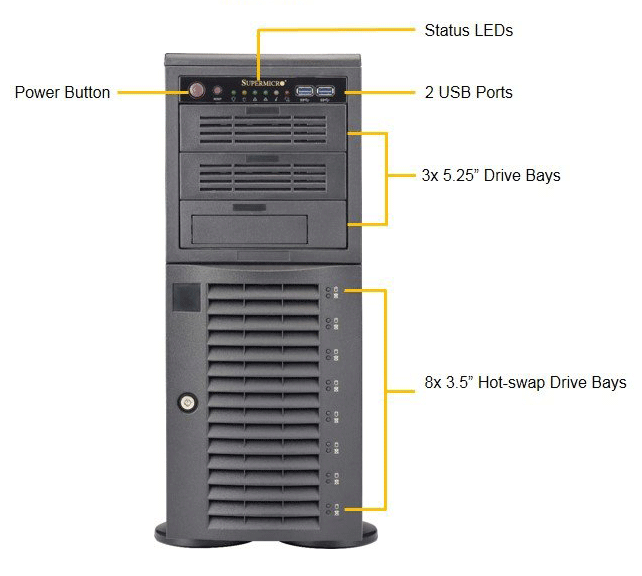

Images
$2,357.70


  Qty.Colfax ProEdge™ SX7200 Workstation, Cost As Configured $2,357.70
Base Platform 1
Rackmount Kit 1
Primary CPU 1
Secondary CPU 1
CPU 1 - Socket 1 of 8    1

Set next    items (  ) like this
CPU 1 - Socket 2 of 8    1
CPU 1 - Socket 3 of 8    1
CPU 1 - Socket 4 of 8    1
CPU 1 - Socket 5 of 8    1
CPU 1 - Socket 6 of 8    1
CPU 1 - Socket 7 of 8    1
CPU 1 - Socket 8 of 8    1
CPU 2 - Socket 1 of 8    1

Set next    items (  ) like this
CPU 2 - Socket 2 of 8    1
CPU 2 - Socket 3 of 8    1
CPU 2 - Socket 4 of 8    1
CPU 2 - Socket 5 of 8    1
CPU 2 - Socket 6 of 8    1
CPU 2 - Socket 7 of 8    1
CPU 2 - Socket 8 of 8    1
DVD+/-RW Drive 1
M.2 Drive 1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
NVM-E Drive Kit 1
Disk Drive 3    1
Disk Drive 4    1
Disk Drive 5    1
Disk Drive 6    1
Disk Drive 7    1
Disk Drive 8    1
RAID Controller 1
Battery Backup 1
Video Card 1
Ethernet HBA 1
Operating System SW 1
   Colfax ProEdge™ SX7200 Workstation, Cost As Configured $2,357.70
